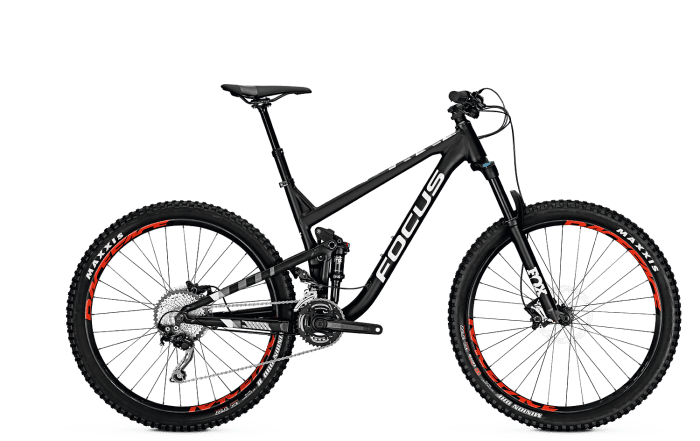

2018 Focus Jam 27.5 AL geometry
Full frame geometry for the 2018 Focus Jam 27.5 AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 590 | 415 | 74.5 | 66.8 | 110 | 599 | 440 | 16 | 425 | 1152 | 42 |
| S | 590 | 415 | 74.5 | 66.8 | 110 | 570 | 410 | 16 | 425 | 1127 | 42 |
| L | 613 | 455 | 74.5 | 66.8 | 135 | 618 | 470 | 16 | 425 | 1182 | 42 |
| XL | 632 | 475 | 74.5 | 66.8 | 135 | 644 | 500 | 16 | 425 | 1210 | 42 |
All measurements in millimetres unless marked (°) for angles.
