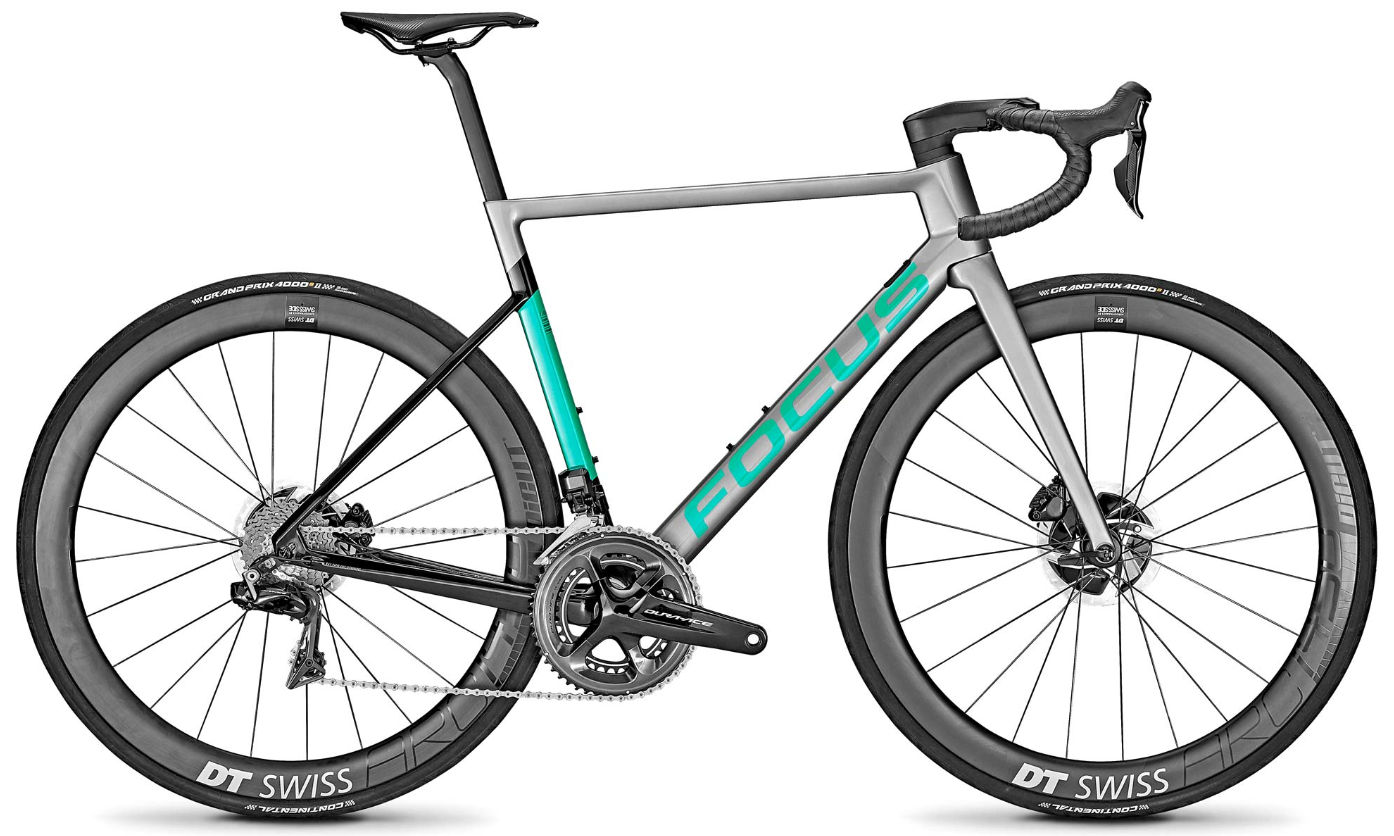

2019 Focus Izalco Max Disc MK II geometry

Name: 2019 Focus Izalco Max Disc MK II
Brand: Focus

Full frame geometry for the 2019 Focus Izalco Max Disc MK II, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XXS	502	360	74	69.5	80	504	430	78	410	975	46
XS	505	368	73.5	70.5	80	517	470	78	410	975	46
S	528	378	73.5	71.5	100	534	490	78	410	985	46
M	544	390	73.5	72	115	551	510	78	410	997	46
L	554	400	73.5	72	125	564	530	78	410	1010	46
XL	579	410	73.5	72.5	150	582	550	78	410	1024	46
XXL	613	420	73.5	72.5	185	602	590	78	410	1044	46

All measurements in millimetres unless marked (°) for angles.
