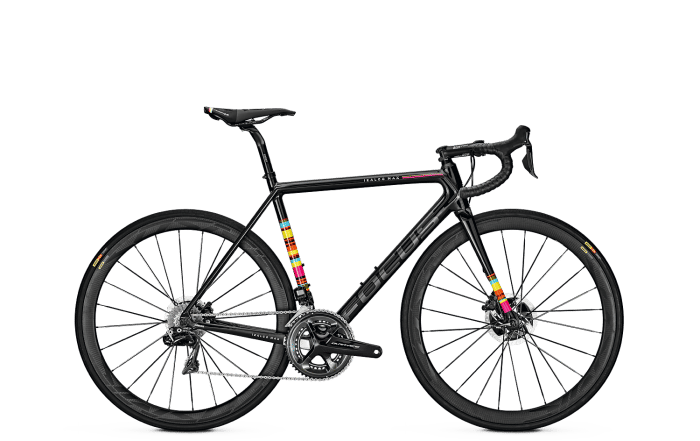

2018 Focus Izalco Max Disc MK I geometry
Full frame geometry for the 2018 Focus Izalco Max Disc MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 510 | 373 | 73.8 | 70.8 | 110 | 521 | 480 | 72 | 415 | 980 | 43 |
| XS | 515 | 378 | 73.6 | 71.4 | 115 | 530 | 500 | 71 | 415 | 982 | 43 |
| S | 521 | 383 | 73.6 | 71.7 | 120 | 536 | 520 | 71 | 415 | 987 | 43 |
| M | 537 | 390 | 73.5 | 72.5 | 135 | 549 | 540 | 70 | 415 | 992 | 43 |
| L | 565 | 398 | 73.5 | 73.5 | 160 | 565 | 560 | 70 | 415 | 998 | 43 |
| XL | 583 | 406 | 73.4 | 73.6 | 180 | 580 | 580 | 69 | 415 | 1012 | 43 |
| XXL | 601 | 422 | 73.2 | 73.7 | 200 | 604 | 610 | 68 | 415 | 1033 | 43 |
All measurements in millimetres unless marked (°) for angles.
