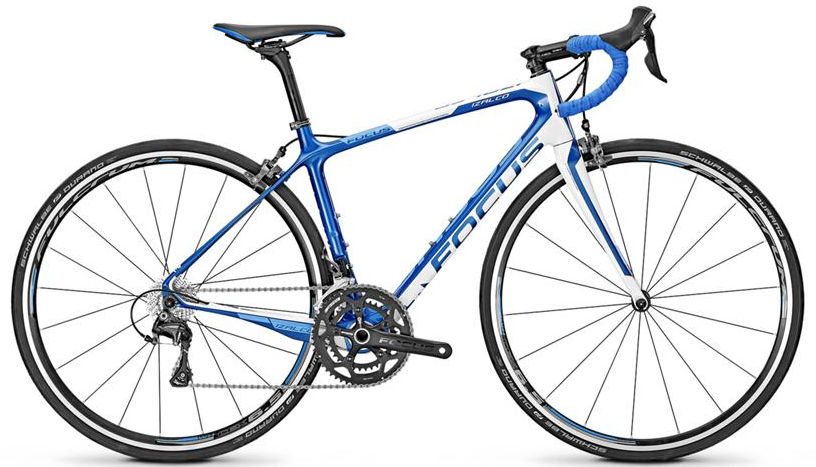

2015 Focus Izalco Donna geometry
Full frame geometry for the 2015 Focus Izalco Donna, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 541 | 365 | 74 | 71 | 145 | 520 | 430 | 70 | 576 | 405 | 971 | 43 | 70 |
| S | 545 | 376 | 74 | 71 | 150 | 532 | 470 | 70 | 588 | 405 | 989 | 43 | 70 |
| M | 561 | 377 | 74 | 71.5 | 165 | 535 | 490 | 70 | 590 | 405 | 986 | 43 | 66 |
| L | 580 | 380 | 73.5 | 72.5 | 180 | 550 | 510 | 70 | 588 | 409 | 987 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
