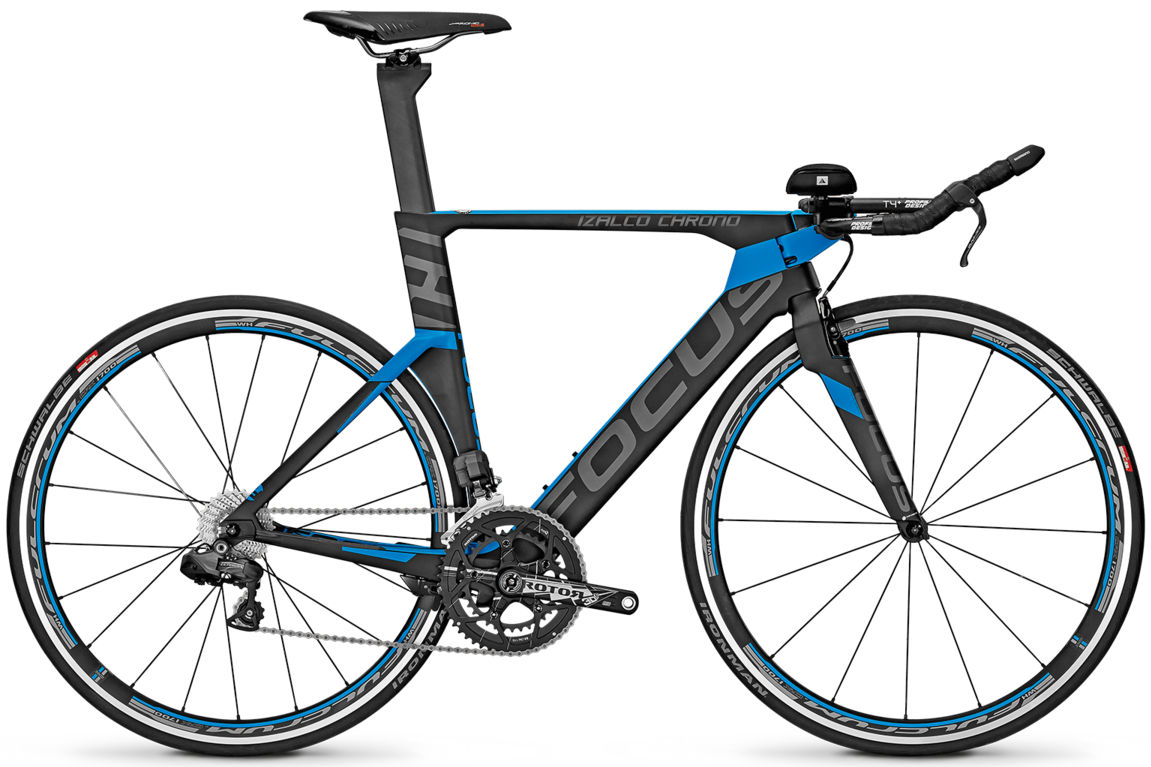

2014 Focus Izalco Chrono Max geometry
Full frame geometry for the 2014 Focus Izalco Chrono Max, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 512 | 460 | 76 | 72 | 122 | 520 | 548 | 75 | 582 | 410 | 980 | 41 |
| M | 519 | 469 | 75 | 72 | 131 | 540 | 557 | 75 | 593 | 420 | 1001 | 41 |
| L | 528 | 485 | 75 | 72 | 141 | 560 | 563 | 75 | 612 | 420 | 1021 | 41 |
| XL | 538 | 503 | 75 | 72 | 151 | 580 | 577 | 75 | 633 | 420 | 1042 | 41 |
All measurements in millimetres unless marked (°) for angles.
