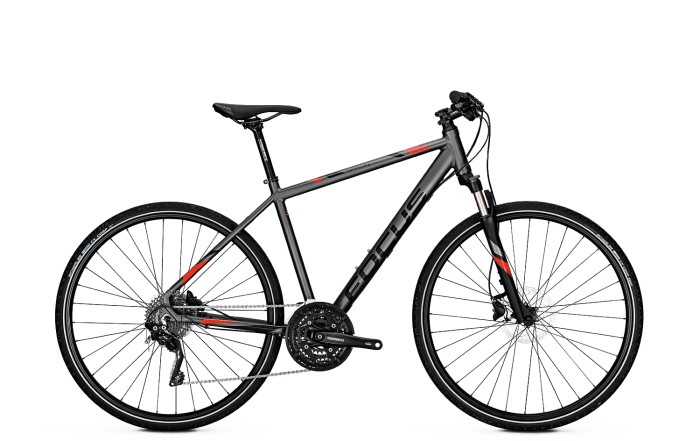

2018 Focus Crater Lake MK II geometry
Full frame geometry for the 2018 Focus Crater Lake MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 394 | 74 | 71 | 135 | 570 | 450 | 60 | 465 | 1093 | 45 |
| M | 616 | 398 | 73.5 | 71.5 | 135 | 580 | 500 | 60 | 465 | 1092 | 45 |
| L | 644 | 398 | 73 | 71.5 | 170 | 595 | 550 | 55 | 465 | 1104 | 45 |
| XL | 691 | 392 | 72.5 | 71.5 | 220 | 610 | 600 | 55 | 465 | 1114 | 45 |
All measurements in millimetres unless marked (°) for angles.
