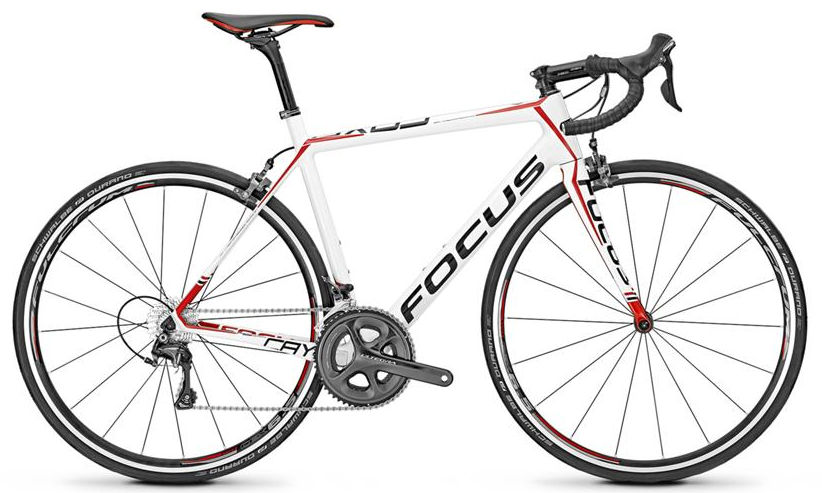

2015 Focus Cayo geometry
Full frame geometry for the 2015 Focus Cayo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 370 | 75.5 | 71 | 115 | 503 | 480 | 70 | 571 | 408 | 970 | 43 | 70 |
| S | 531 | 380 | 73.5 | 72 | 130 | 537 | 510 | 70 | 578 | 408 | 977 | 43 | 63 |
| M | 547 | 390 | 73.5 | 72.5 | 145 | 552 | 540 | 70 | 588 | 408 | 987 | 43 | 60 |
| L | 569 | 400 | 73.5 | 73.5 | 165 | 568 | 570 | 70 | 595 | 408 | 995 | 43 | 54 |
| XL | 588 | 415 | 73.5 | 73.5 | 185 | 589 | 600 | 70 | 616 | 408 | 1015 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
