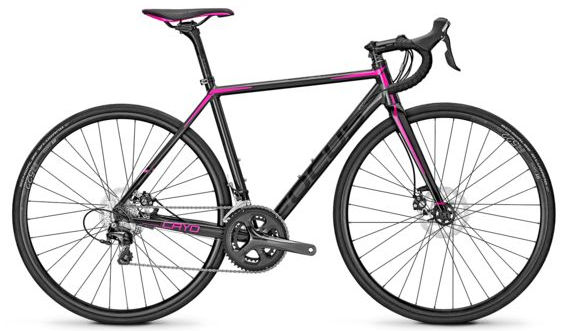

2016 Focus Cayo Al Donna Disc geometry
Full frame geometry for the 2016 Focus Cayo Al Donna Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 370 | 75 | 71 | 115 | 503 | 480 | 70 | 571 | 415 | 978 | 43 | 70 |
| S | 533 | 379 | 73 | 72 | 130 | 537 | 510 | 70 | 577 | 415 | 984 | 43 | 63 |
| M | 549 | 389 | 73 | 72 | 145 | 552 | 540 | 70 | 591 | 415 | 995 | 43 | 63 |
All measurements in millimetres unless marked (°) for angles.
