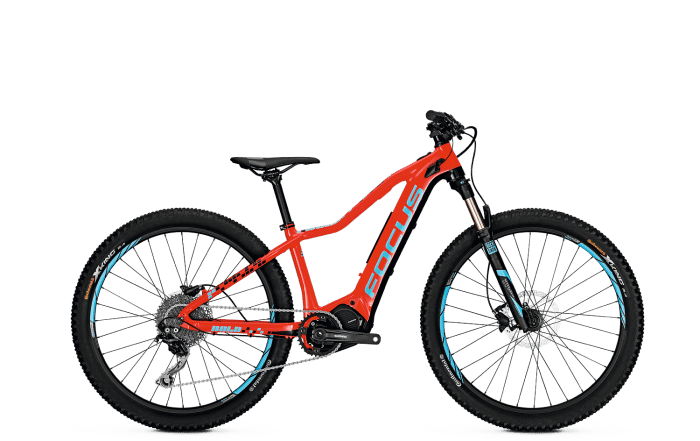

2018 Focus Bold2 Junior geometry
Full frame geometry for the 2018 Focus Bold2 Junior, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 571 | 380 | 74 | 67.5 | 110 | 544 | 350 | 45 | 425 | 1063 | 39 |
All measurements in millimetres unless marked (°) for angles.
