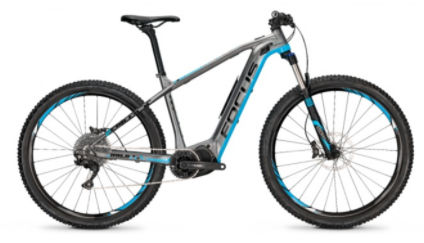

2017 Focus Bold2 29 geometry
Full frame geometry for the 2017 Focus Bold2 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 626 | 410 | 74 | 67.5 | 100 | 593 | 410 | 60 | 460 | 1156 | 51 |
| M | 635 | 420 | 74 | 67.5 | 110 | 603 | 440 | 60 | 460 | 1170 | 51 |
| L | 654 | 435 | 74 | 67.5 | 130 | 623 | 470 | 60 | 460 | 1192 | 51 |
| XL | 672 | 450 | 74 | 67.5 | 150 | 643 | 500 | 60 | 460 | 1215 | 51 |
All measurements in millimetres unless marked (°) for angles.
