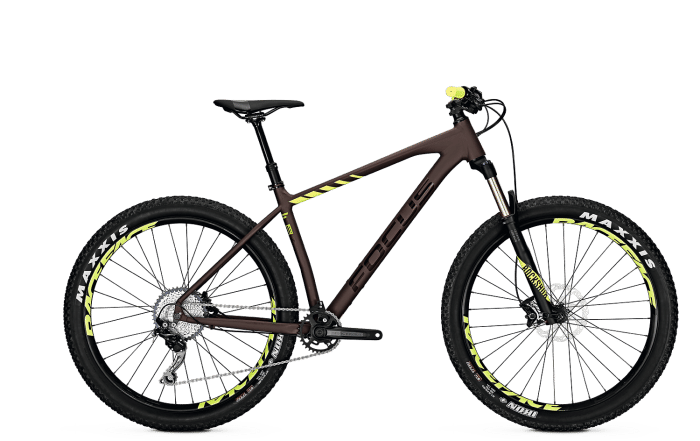

2018 Focus Bold Factory geometry
Full frame geometry for the 2018 Focus Bold Factory, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 409 | 74 | 68 | 100 | 586 | 410 | 55 | 430 | 1117 | 51 |
| M | 624 | 419 | 74 | 68 | 110 | 598 | 440 | 55 | 430 | 1131 | 51 |
| L | 633 | 434 | 74 | 68 | 120 | 616 | 470 | 55 | 430 | 1149 | 51 |
| XL | 642 | 449 | 74 | 68 | 130 | 634 | 500 | 55 | 430 | 1168 | 51 |
All measurements in millimetres unless marked (°) for angles.
