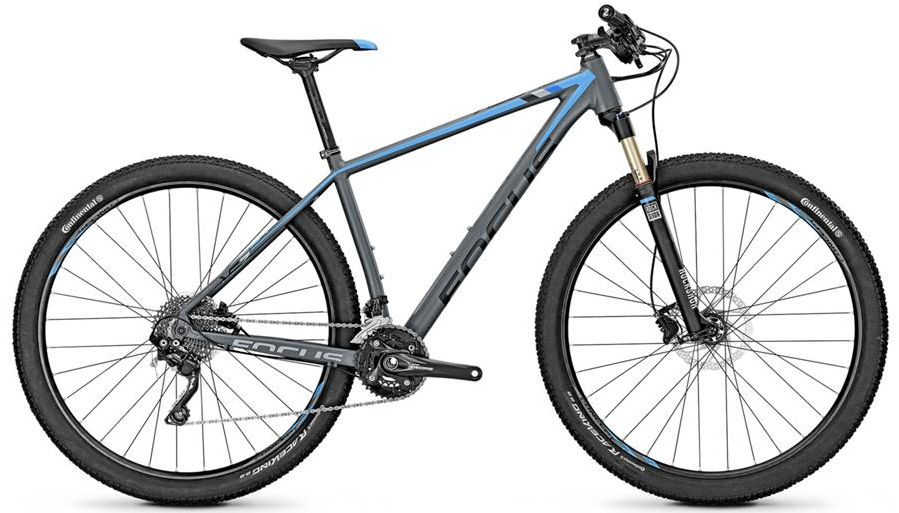

2015 Focus Black Forest 29r geometry
Full frame geometry for the 2015 Focus Black Forest 29r, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 633 | 404 | 73.5 | 70 | 108 | 591 | 420 | 69 | 659 | 440 | 1090 | 44 | 83 |
| M | 634 | 422 | 73.5 | 70 | 110 | 607 | 470 | 69 | 677 | 440 | 1109 | 44 | 83 |
| L | 648 | 431 | 73.5 | 70 | 125 | 624 | 520 | 69 | 691 | 440 | 1124 | 44 | 83 |
All measurements in millimetres unless marked (°) for angles.
