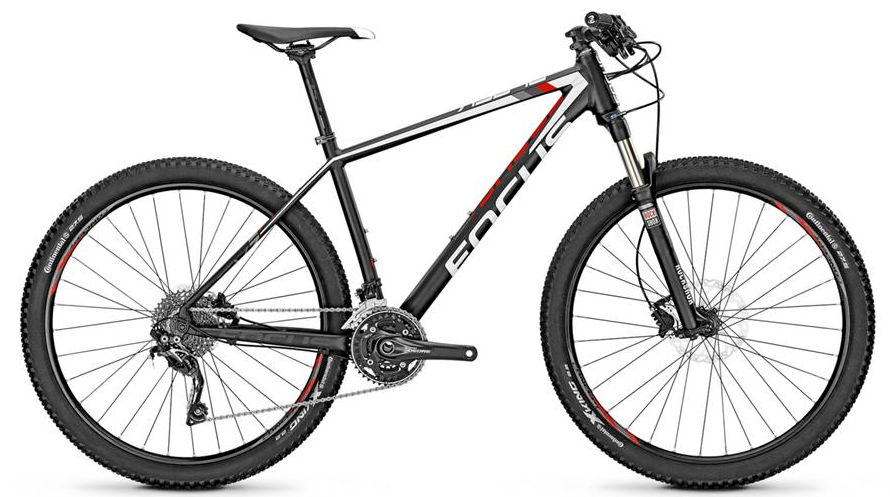

2015 Focus Black Forest 27r geometry
Full frame geometry for the 2015 Focus Black Forest 27r, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 410 | 73.5 | 69.5 | 110 | 586 | 420 | 48 | 663 | 425 | 1083 | 44 | 78 |
| M | 602 | 418 | 73.5 | 69.5 | 118 | 596 | 460 | 48 | 674 | 425 | 1094 | 44 | 78 |
| L | 618 | 430 | 73.5 | 69.5 | 135 | 613 | 500 | 48 | 692 | 425 | 1113 | 44 | 78 |
| XL | 632 | 442 | 73.5 | 69.5 | 150 | 629 | 540 | 48 | 709 | 425 | 1130 | 44 | 78 |
All measurements in millimetres unless marked (°) for angles.
