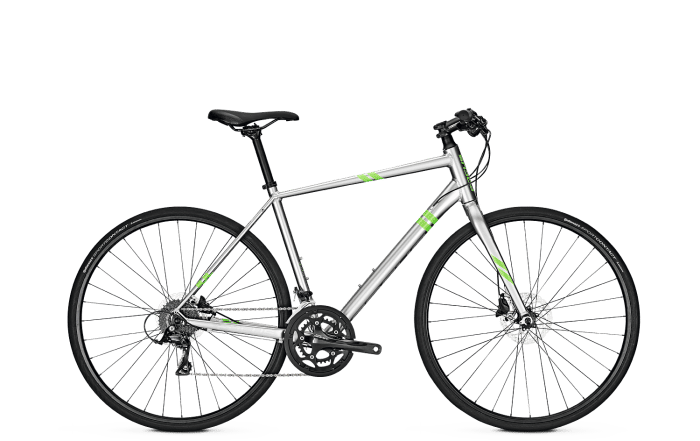

2018 Focus Arriba MK II geometry
Full frame geometry for the 2018 Focus Arriba MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 568 | 390 | 72.5 | 70.5 | 155 | 569 | 450 | 62 | 434 | 1047 | 46 |
| M | 582 | 400 | 72.5 | 70.5 | 170 | 584 | 500 | 62 | 434 | 1063 | 46 |
| L | 596 | 410 | 72.5 | 70.5 | 185 | 598 | 550 | 62 | 434 | 1077 | 46 |
| XL | 606 | 420 | 72.5 | 70.5 | 185 | 612 | 600 | 62 | 434 | 1091 | 46 |
All measurements in millimetres unless marked (°) for angles.
