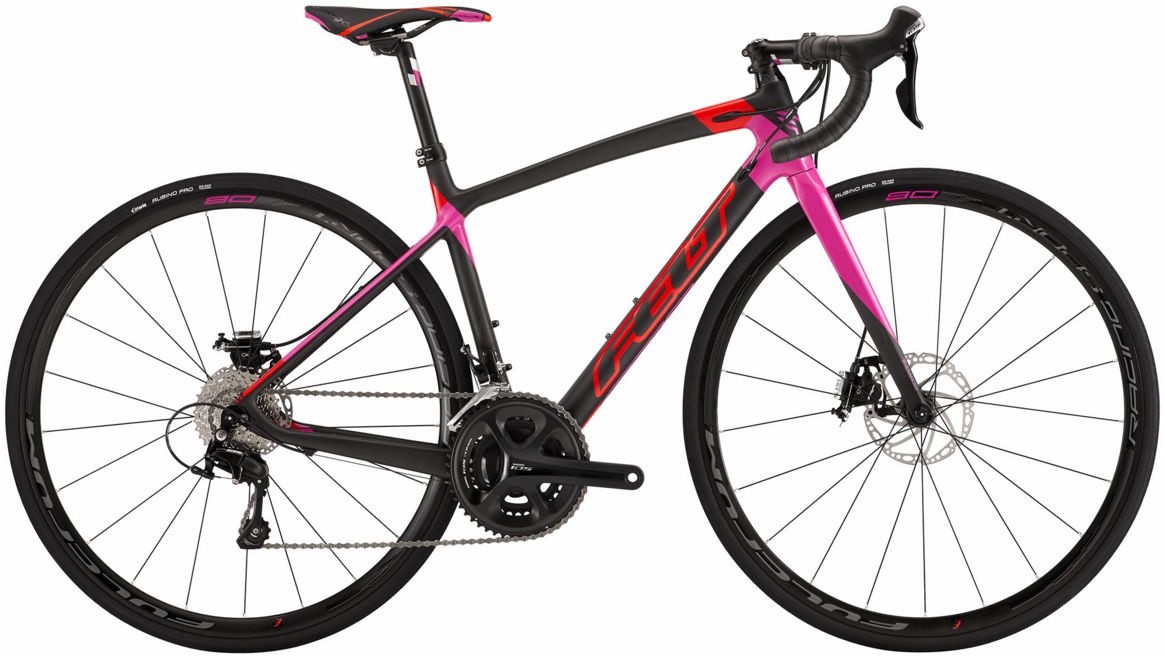

2016 Felt ZW Disc geometry
Full frame geometry for the 2016 Felt ZW Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 517 | 357 | 75.3 | 70.3 | 120 | 495 | 430 | 72 | 576 | 410 | 974 | 52 |
| 45 | 530 | 363 | 74.5 | 71.3 | 130 | 512 | 450 | 72 | 578 | 410 | 977 | 52 |
| 47 | 541 | 373 | 74.5 | 72 | 140 | 525 | 470 | 70 | 583 | 417 | 990 | 50 |
| 50 | 561 | 384 | 74 | 72.5 | 160 | 545 | 500 | 70 | 595 | 417 | 1002 | 50 |
All measurements in millimetres unless marked (°) for angles.
