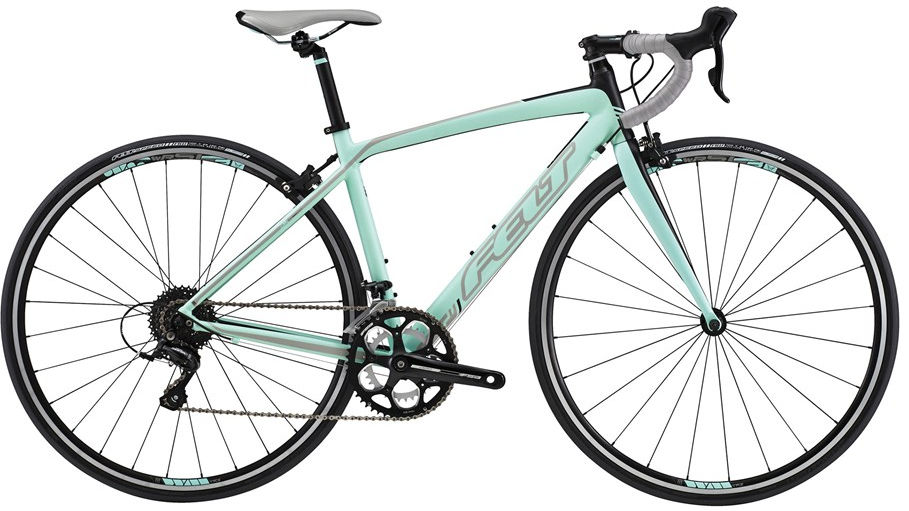

2014 Felt ZW Alloy geometry
Full frame geometry for the 2014 Felt ZW Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P/43 | 507 | 359 | 75.3 | 70.3 | 110 | 495 | 430 | 675 | 72 | 575 | 410 | 974 | 52 | 65 |
| S/45 | 526 | 367 | 74.5 | 71.5 | 125 | 514 | 450 | 694 | 72 | 578 | 410 | 977 | 52 | 57 |
| M/47 | 541 | 374 | 74.5 | 72 | 140 | 525 | 470 | 713 | 70 | 584 | 417 | 990 | 50 | 56 |
| T/50 | 561 | 384 | 74 | 72.5 | 160 | 545 | 500 | 726 | 70 | 595 | 417 | 1002 | 50 | 53 |
All measurements in millimetres unless marked (°) for angles.
