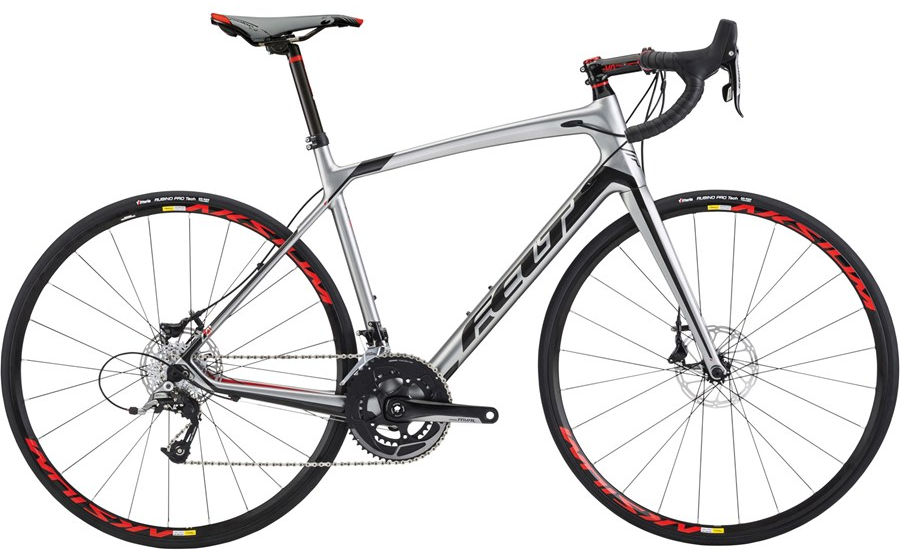

2015 Felt Z Carbon Disc geometry
Full frame geometry for the 2015 Felt Z Carbon Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 541 | 373 | 74.5 | 72 | 140 | 525 | 470 | 698 | 70 | 583 | 417 | 990 | 50 | 56 |
| 54 | 561 | 384 | 74 | 72.5 | 160 | 545 | 500 | 727 | 70 | 595 | 417 | 1002 | 50 | 53 |
| 56 | 580 | 388 | 73.5 | 72.5 | 180 | 560 | 520 | 747 | 70 | 605 | 417 | 1012 | 50 | 53 |
| 58 | 600 | 392 | 73 | 72.5 | 200 | 575 | 540 | 767 | 70 | 615 | 417 | 1022 | 50 | 53 |
| 61 | 619 | 406 | 73 | 72.5 | 220 | 595 | 570 | 795 | 70 | 635 | 417 | 1042 | 50 | 53 |
All measurements in millimetres unless marked (°) for angles.
