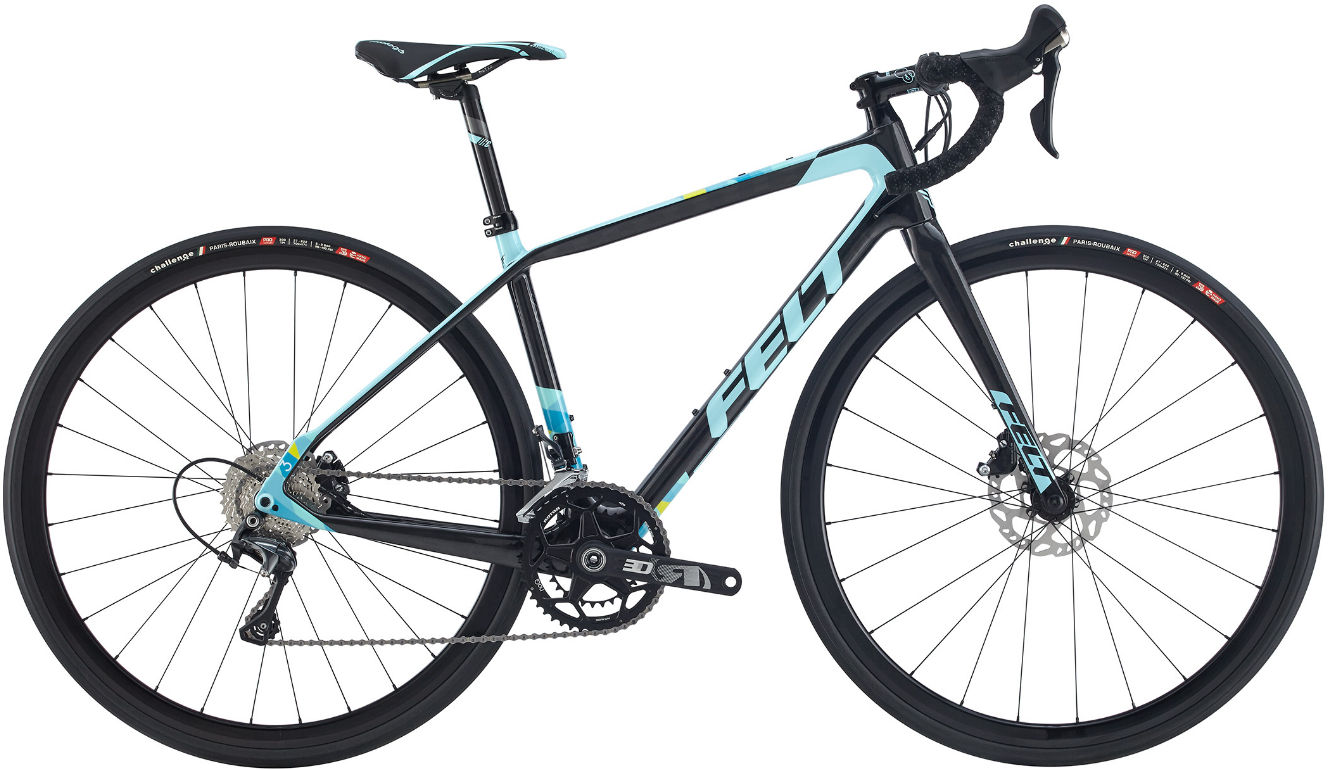

2017 Felt VRW C geometry
Full frame geometry for the 2017 Felt VRW C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 521 | 355 | 75.3 | 70.3 | 115 | 495 | 390 | 665 | 72 | 576 | 412 | 977 | 52 |
| 47 | 539 | 363 | 74.7 | 71.3 | 130 | 510 | 410 | 687 | 72 | 580 | 412 | 981 | 52 |
| 51 | 555 | 369 | 74.5 | 72 | 145 | 525 | 430 | 708 | 70 | 583 | 415 | 989 | 50 |
| 54 | 576 | 379 | 74 | 72.5 | 165 | 545 | 460 | 737 | 70 | 595 | 415 | 1000 | 50 |
| 56 | 595 | 386 | 73.5 | 72.5 | 185 | 563 | 480 | 757 | 70 | 608 | 415 | 1013 | 50 |
All measurements in millimetres unless marked (°) for angles.
