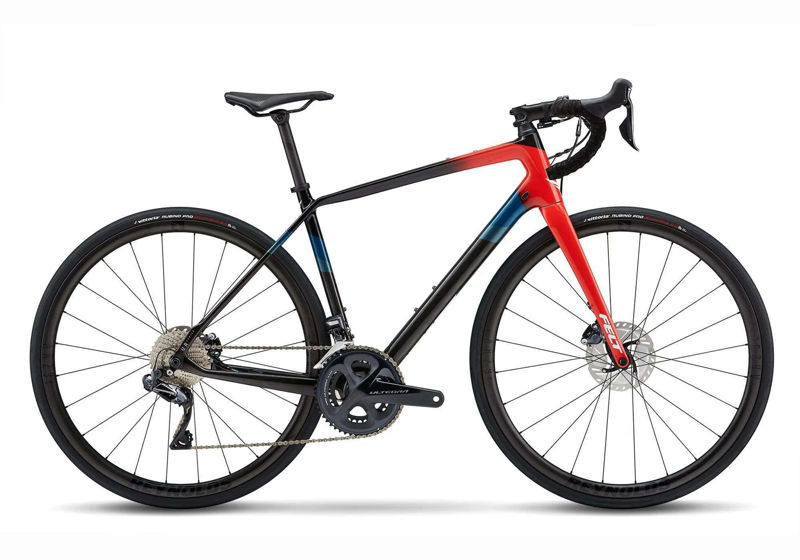

2020 Felt VR Endurance geometry
Full frame geometry for the 2020 Felt VR Endurance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS 43cm | 521 | 355 | 75.3 | 70.3 | 115 | 495 | 410 | 665 | 72 | 576 | 977 | 52 |
| XS 47cm | 539 | 362 | 74.7 | 71.3 | 130 | 510 | 430 | 687 | 72 | 580 | 981 | 52 |
| S 51cm | 555 | 369 | 74.5 | 72 | 145 | 525 | 450 | 708 | 70 | 583 | 989 | 50 |
| M 54cm | 576 | 379 | 74 | 72.5 | 165 | 545 | 480 | 737 | 70 | 595 | 1000 | 50 |
| L 56cm | 595 | 386 | 73.5 | 72.5 | 185 | 563 | 500 | 757 | 70 | 608 | 1013 | 50 |
| XL58cm | 614 | 392 | 73 | 72.5 | 205 | 580 | 520 | 777 | 70 | 620 | 1027 | 50 |
| XXL 61cm | 633 | 401 | 73 | 72.5 | 225 | 595 | 550 | 805 | 70 | 635 | 1042 | 50 |
All measurements in millimetres unless marked (°) for angles.
