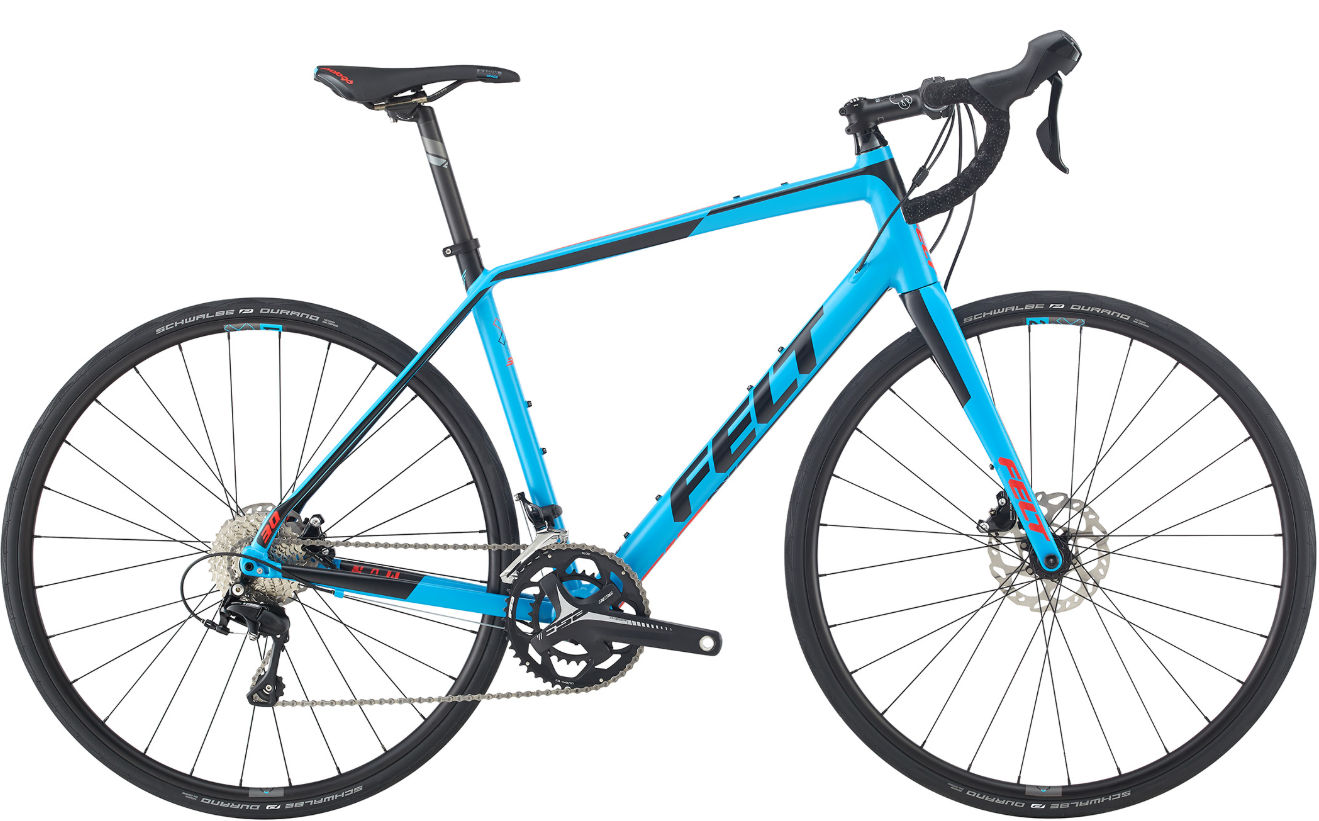

2017 Felt VR AL geometry
Full frame geometry for the 2017 Felt VR AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 541 | 362 | 74.7 | 71.3 | 130 | 510 | 381 | 689 | 74 | 580 | 415 | 984 | 52 |
| 51 | 557 | 369 | 74.5 | 72 | 145 | 525 | 399 | 709 | 72 | 584 | 417 | 990 | 50 |
| 54 | 578 | 379 | 74 | 72.5 | 165 | 545 | 429 | 737 | 72 | 595 | 417 | 1001 | 50 |
| 56 | 597 | 386 | 73.5 | 72.5 | 185 | 563 | 449 | 757 | 72 | 608 | 417 | 1014 | 50 |
| 58 | 616 | 391 | 73 | 72.5 | 205 | 580 | 469 | 776 | 72 | 620 | 417 | 1026 | 50 |
| 61 | 635 | 401 | 73 | 72.5 | 225 | 595 | 499 | 803 | 72 | 635 | 417 | 1041 | 50 |
All measurements in millimetres unless marked (°) for angles.
