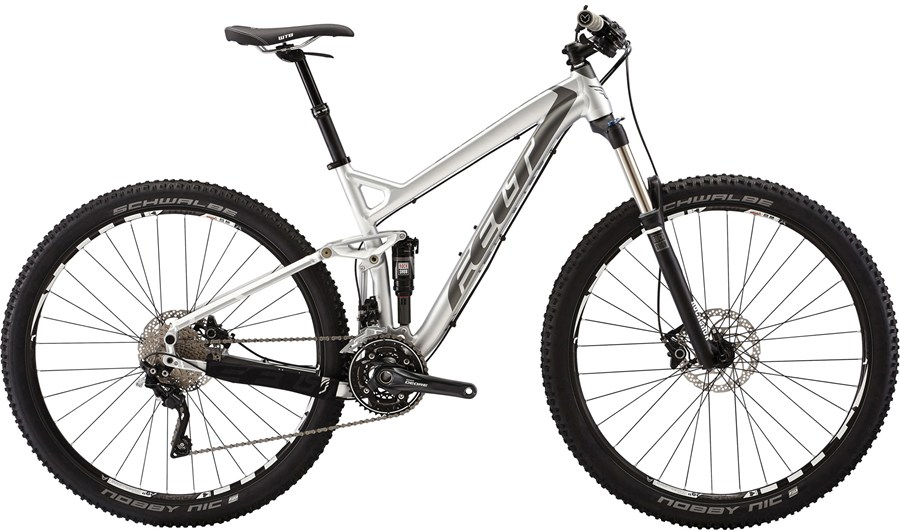

2015 Felt Virtue Aluminium geometry
Full frame geometry for the 2015 Felt Virtue Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/16 | 624 | 390 | 74.5 | 69 | 100 | 563 | 410 | 706 | 36 | 666 | 450 | 1114 | 46 | 88 |
| M/21 | 634 | 415 | 74.5 | 69 | 110 | 591 | 460 | 745 | 36 | 695 | 450 | 1143 | 46 | 88 |
| L/20 | 643 | 442 | 74.5 | 69 | 120 | 620 | 510 | 774 | 36 | 725 | 450 | 1173 | 46 | 88 |
| XL/22 | 652 | 468 | 74.5 | 69 | 130 | 649 | 560 | 790 | 36 | 755 | 450 | 1203 | 46 | 88 |
All measurements in millimetres unless marked (°) for angles.
