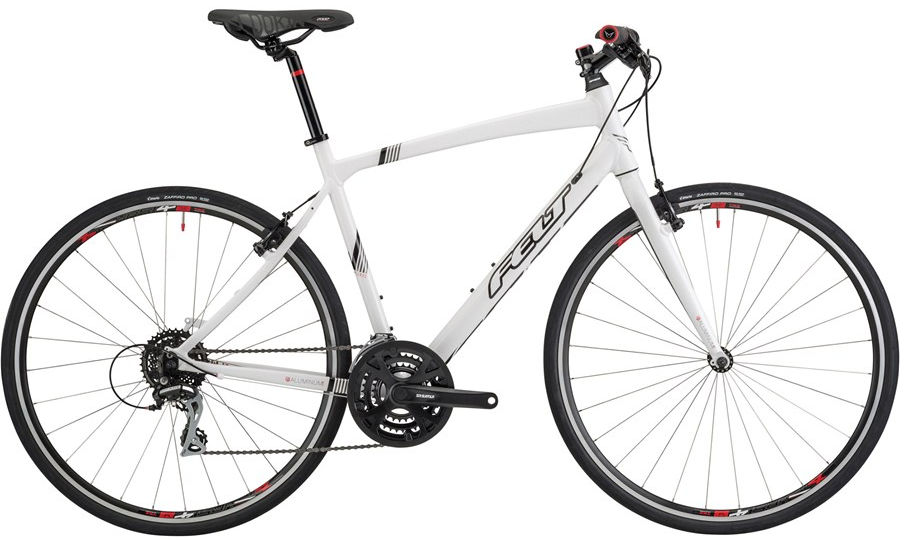

2015 Felt VF geometry
Full frame geometry for the 2015 Felt VF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 541 | 375 | 74 | 70 | 130 | 530 | 430 | 707 | 65 | 603 | 445 | 1040 | 48 | 70 |
| 45 | 552 | 377 | 74 | 70.5 | 140 | 535 | 450 | 718 | 65 | 604 | 445 | 1041 | 48 | 67 |
| 51 | 564 | 383 | 73.5 | 71 | 150 | 550 | 490 | 753 | 65 | 609 | 445 | 1046 | 48 | 64 |
| 54 | 583 | 393 | 73 | 71 | 170 | 570 | 520 | 780 | 65 | 625 | 445 | 1062 | 48 | 64 |
| 56 | 592 | 404 | 73 | 71 | 180 | 585 | 540 | 798 | 65 | 640 | 445 | 1077 | 48 | 64 |
| 58 | 613 | 413 | 73 | 71.5 | 200 | 600 | 560 | 819 | 65 | 650 | 445 | 1087 | 48 | 61 |
| 61 | 634 | 425 | 73 | 72 | 220 | 620 | 590 | 845 | 65 | 664 | 445 | 1102 | 48 | 58 |
All measurements in millimetres unless marked (°) for angles.
