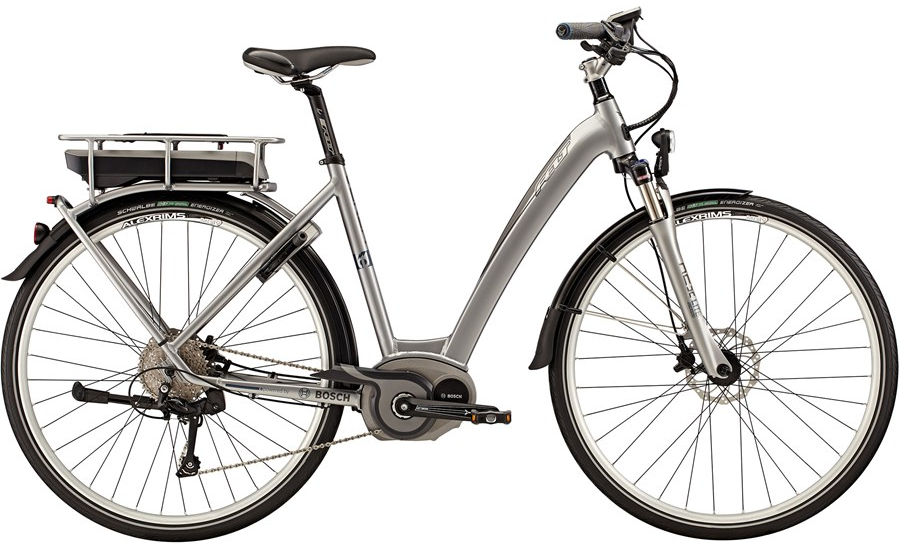

2015 Felt VERZAe geometry
Full frame geometry for the 2015 Felt VERZAe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 605 | 426 | 74 | 71 | 115 | 600 | 560 | 420 | 67 | 659 | 470 | 1121 | 42 | 71 |
| M | 605 | 411 | 74 | 71 | 115 | 585 | 520 | 420 | 67 | 644 | 470 | 1106 | 42 | 71 |
| S | 605 | 408 | 75 | 71 | 115 | 570 | 480 | 420 | 67 | 641 | 470 | 1102 | 42 | 71 |
| XS | 605 | 393 | 75 | 71 | 115 | 555 | 440 | 420 | 67 | 626 | 470 | 1087 | 42 | 71 |
All measurements in millimetres unless marked (°) for angles.
