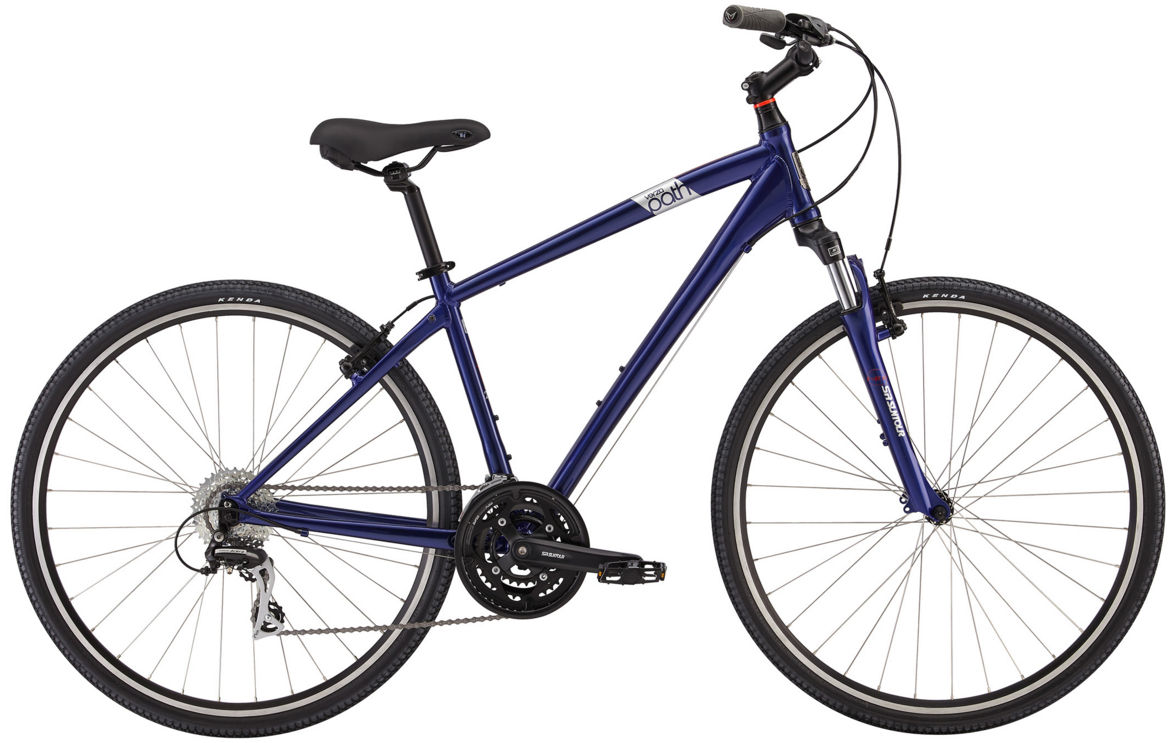

2015 Felt Verza Path geometry
Full frame geometry for the 2015 Felt Verza Path, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 619 | 392 | 74 | 70 | 130 | 569 | 394 | 735 | 65 | 642 | 450 | 1084 | 42 |
| 18 | 628 | 397 | 73.5 | 70 | 145 | 582 | 445 | 773 | 60 | 651 | 450 | 1094 | 42 |
| 20 | 642 | 405 | 73.5 | 70 | 160 | 595 | 495 | 807 | 60 | 664 | 450 | 1107 | 42 |
| 22 | 663 | 413 | 73.5 | 70.5 | 180 | 609 | 546 | 845 | 60 | 674 | 450 | 1117 | 42 |
All measurements in millimetres unless marked (°) for angles.
