2015 Felt · USW

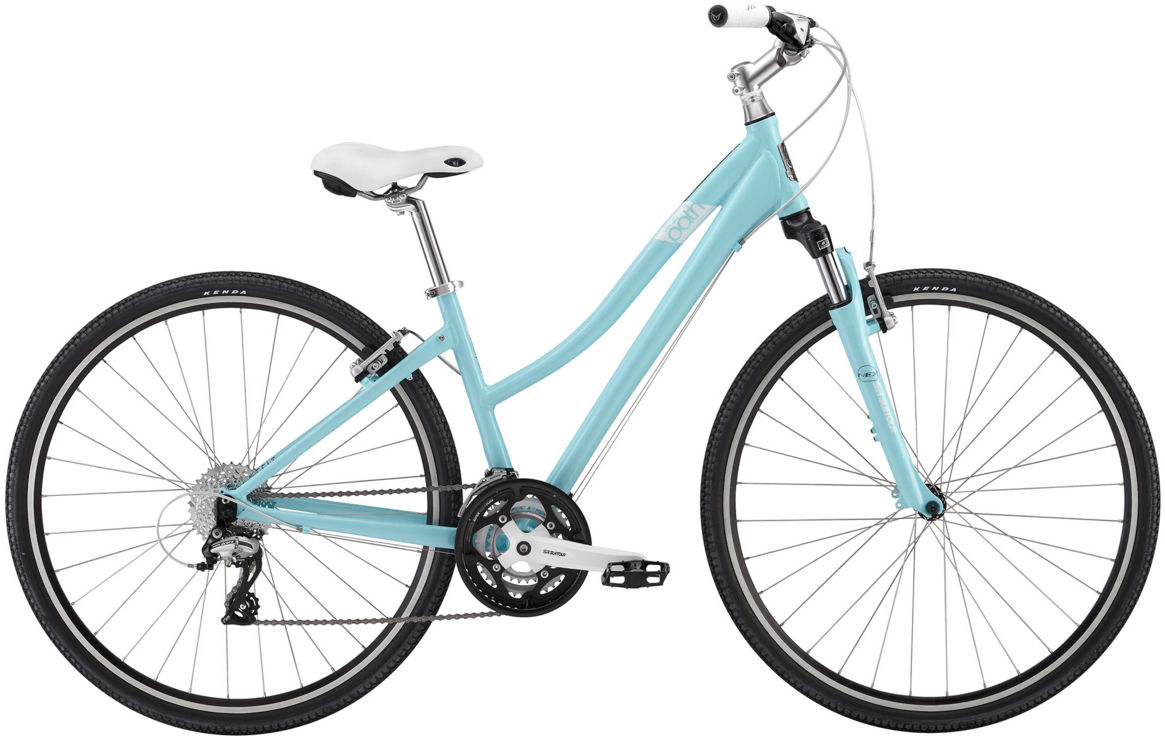

2015 Felt Verza Path Women geometry
Full frame geometry for the 2015 Felt Verza Path Women, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 541 | 375 | 74 | 70 | 130 | 530 | 430 | 707 | 65 | 603 | 445 | 1040 | 48 |
| 48 | 552 | 377 | 74 | 70.5 | 140 | 535 | 450 | 718 | 65 | 604 | 445 | 1041 | 48 |
| 51 | 564 | 383 | 73.5 | 71 | 150 | 550 | 490 | 753 | 65 | 609 | 445 | 1046 | 48 |
| 54 | 583 | 393 | 73 | 71 | 170 | 570 | 520 | 780 | 65 | 625 | 445 | 1062 | 48 |
| 13 | 619 | 362 | 74 | 70 | 130 | 540 | 330 | 577 | 65 | 612 | 450 | 1054 | 42 |
| 16 | 633 | 367 | 73.5 | 70 | 145 | 555 | 406 | 602 | 65 | 622 | 450 | 1064 | 42 |
| 19 | 642 | 380 | 73.5 | 70 | 160 | 569 | 482 | 635 | 60 | 639 | 450 | 1082 | 42 |
All measurements in millimetres unless marked (°) for angles.
