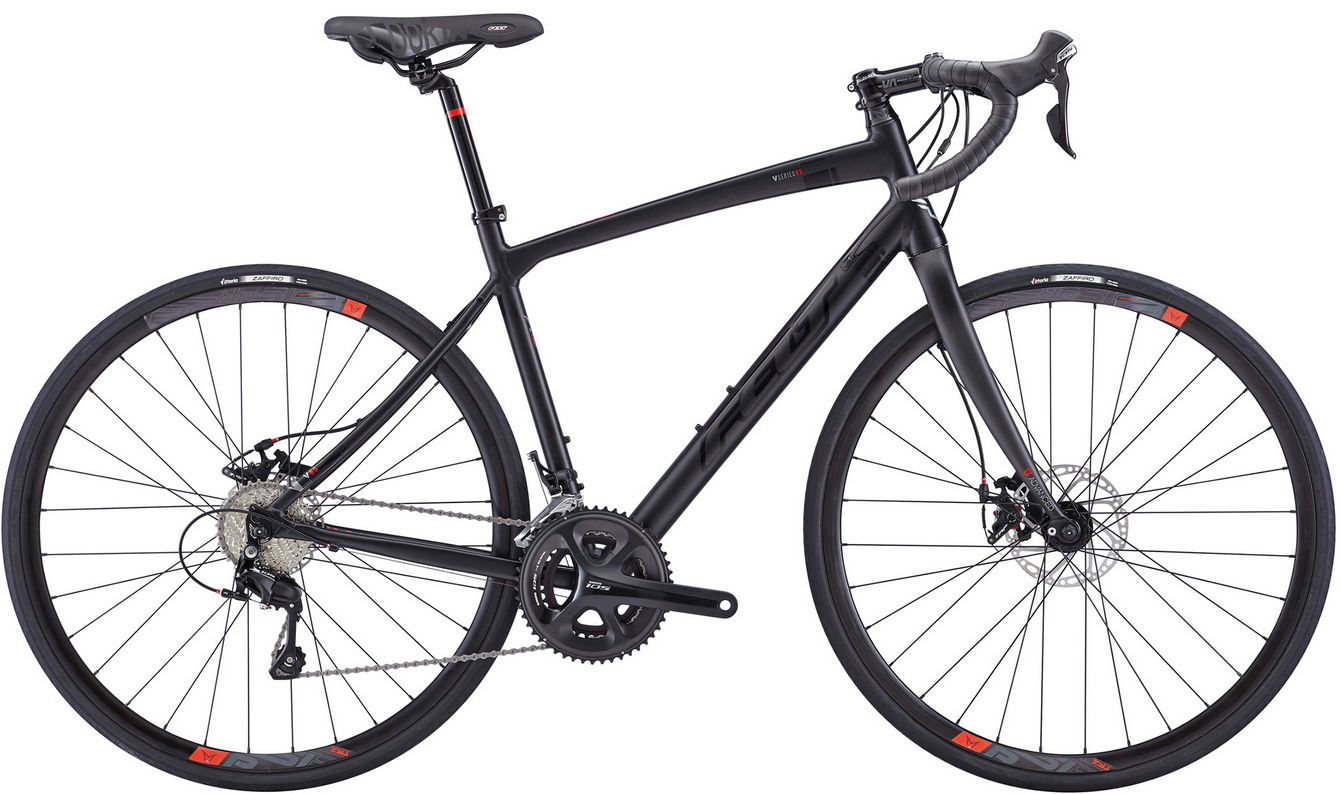

2015 Felt V-Series Alloy geometry
Full frame geometry for the 2015 Felt V-Series Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 544 | 356 | 75.5 | 69.5 | 130 | 500 | 420 | 707 | 72 | 594 | 430 | 1013 | 50 | 71 |
| 45 | 556 | 358 | 74.5 | 70 | 140 | 515 | 440 | 718 | 72 | 595 | 430 | 1015 | 50 | 74 |
| 51 | 566 | 371 | 74.5 | 70.5 | 150 | 530 | 460 | 753 | 70 | 604 | 430 | 1024 | 50 | 71 |
| 54 | 587 | 380 | 74 | 71 | 170 | 550 | 500 | 780 | 70 | 615 | 430 | 1035 | 50 | 68 |
| 56 | 608 | 384 | 73.5 | 71.5 | 190 | 565 | 520 | 798 | 70 | 621 | 430 | 1041 | 50 | 64 |
| 58 | 627 | 387 | 73 | 71.5 | 210 | 580 | 540 | 819 | 70 | 630 | 430 | 1051 | 50 | 64 |
| 61 | 646 | 402 | 73 | 71.5 | 230 | 600 | 560 | 845 | 70 | 651 | 430 | 1071 | 50 | 64 |
All measurements in millimetres unless marked (°) for angles.
