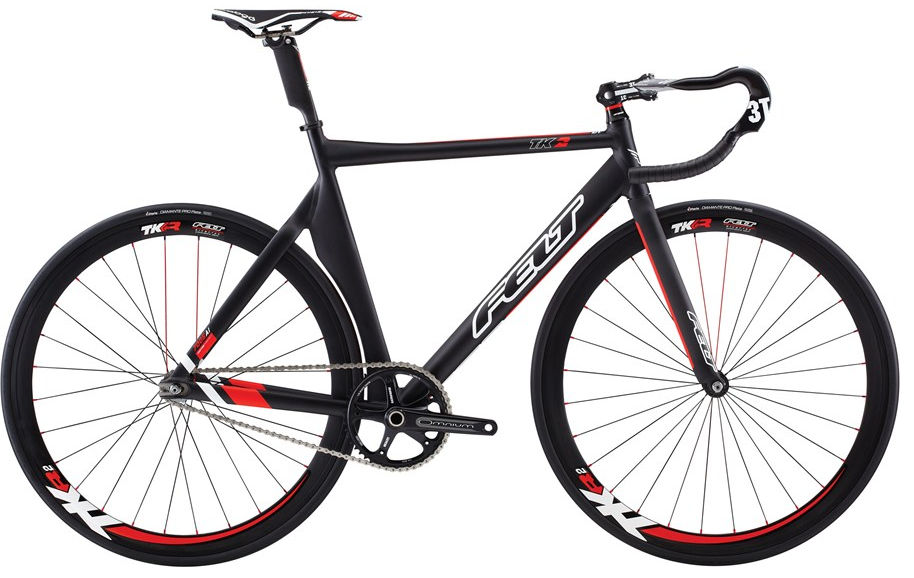

2014 Felt TK2 geometry
Full frame geometry for the 2014 Felt TK2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 | 517 | 392 | 74 | 75 | 120 | 540 | 540 | 55 | 550 | 395 | 938 | 30 | 58 |
| 56 | 536 | 406 | 74 | 75 | 140 | 560 | 560 | 55 | 569 | 395 | 958 | 30 | 58 |
| 58 | 555 | 421 | 74 | 75 | 160 | 580 | 580 | 55 | 589 | 395 | 978 | 30 | 58 |
| 61 | 589 | 438 | 74 | 75 | 195 | 607 | 610 | 55 | 615 | 395 | 1004 | 30 | 58 |
All measurements in millimetres unless marked (°) for angles.
