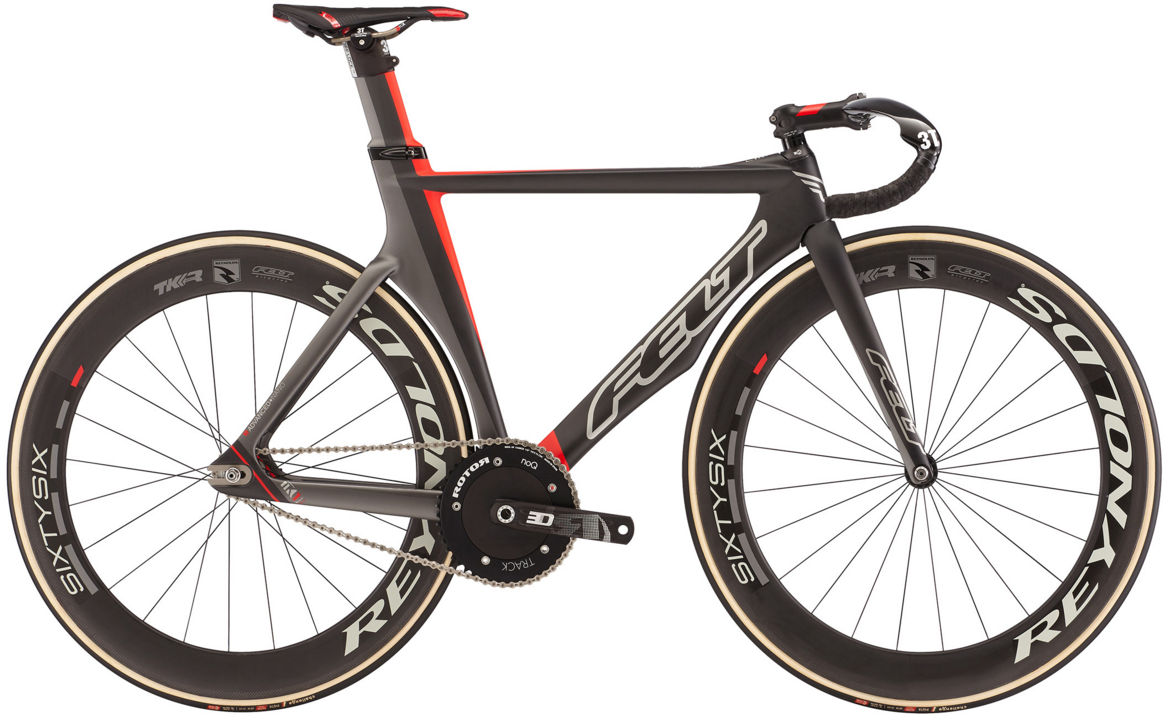

2016 Felt TK1 geometry
Full frame geometry for the 2016 Felt TK1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 469 | 395 | 74 | 73 | 80 | 530 | 505 | 745 | 55 | 566 | 375 | 935 | 40 |
| 55 | 480 | 412 | 74 | 73.5 | 90 | 550 | 525 | 754 | 55 | 582 | 375 | 950 | 40 |
| 57 | 501 | 426 | 74 | 74 | 110 | 570 | 545 | 774 | 55 | 598 | 375 | 967 | 40 |
| 60 | 527 | 444 | 73.5 | 74.5 | 135 | 600 | 570 | 800 | 55 | 619 | 375 | 987 | 40 |
All measurements in millimetres unless marked (°) for angles.
