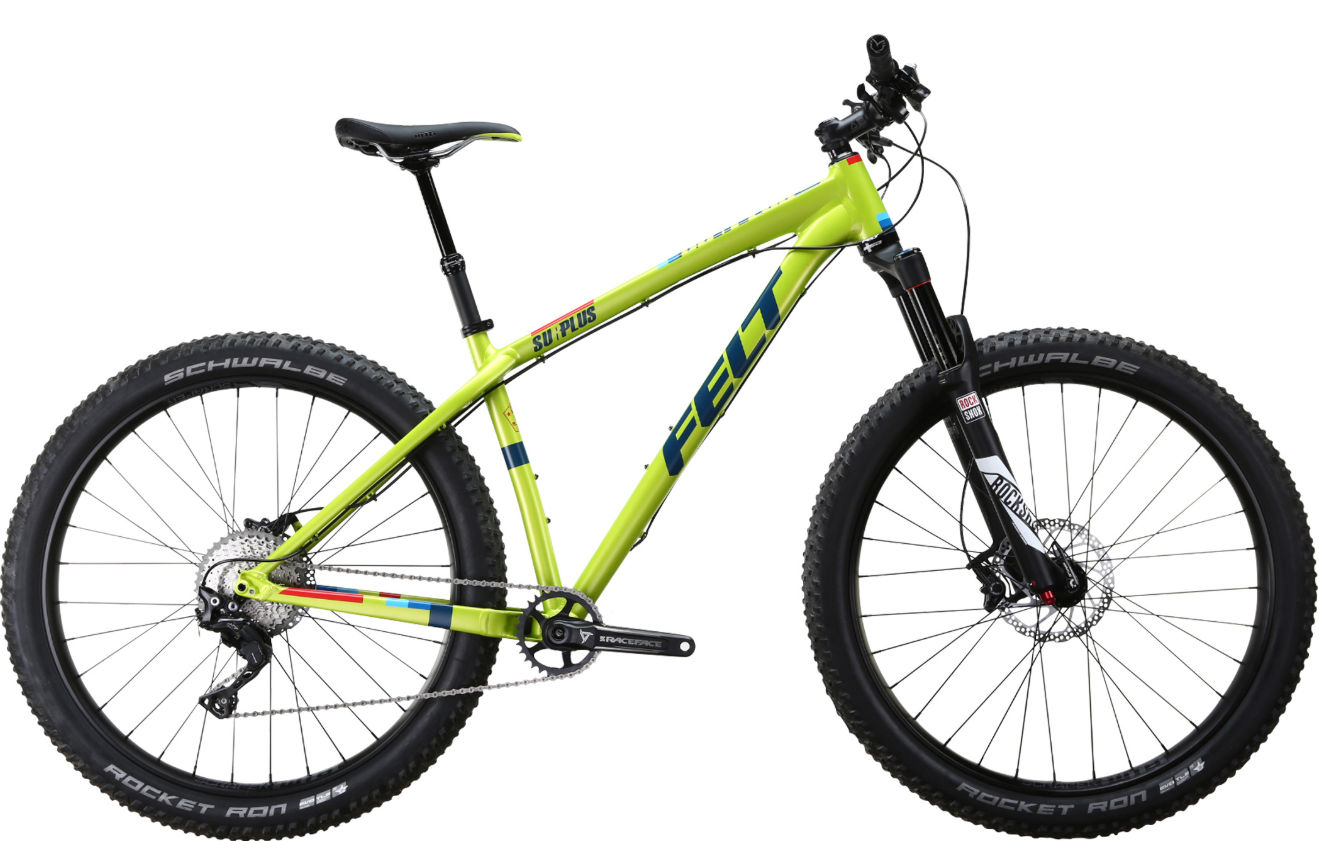

2016 Felt Surplus geometry
Full frame geometry for the 2016 Felt Surplus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 644 | 373 | 73 | 68 | 100 | 570 | 360 | 660 | 65 | 665 | 440 | 1097 | 51 |
| 16 | 653 | 390 | 73 | 68 | 110 | 590 | 400 | 703 | 65 | 686 | 440 | 1118 | 51 |
| 18 | 662 | 408 | 73 | 68 | 120 | 610 | 450 | 749 | 65 | 707 | 440 | 1139 | 51 |
| 20 | 672 | 425 | 73 | 68 | 130 | 630 | 500 | 792 | 65 | 728 | 440 | 1160 | 51 |
| 22 | 681 | 442 | 73 | 68 | 140 | 650 | 550 | 819 | 65 | 749 | 440 | 1181 | 51 |
All measurements in millimetres unless marked (°) for angles.
