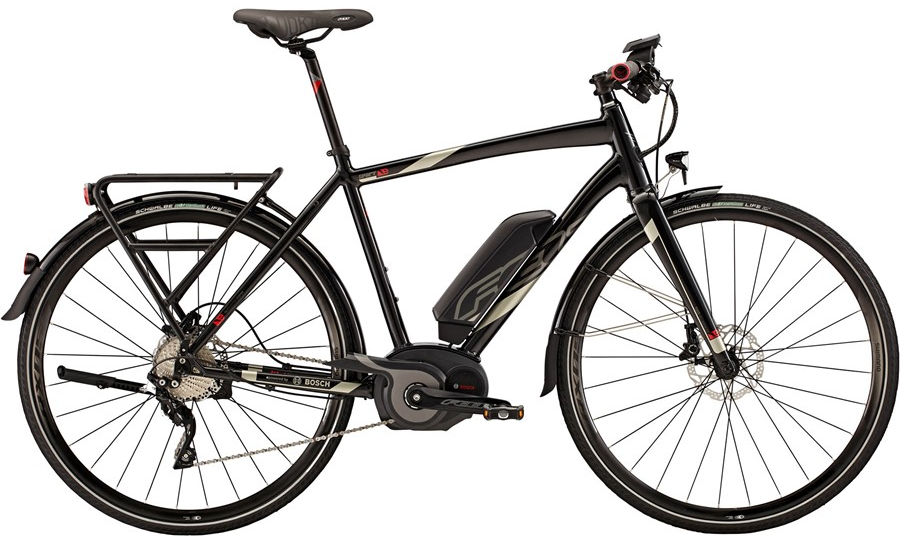

2015 Felt SPORTe geometry
Full frame geometry for the 2015 Felt SPORTe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 553 | 381 | 74 | 70 | 150 | 540 | 440 | 729 | 55 | 613 | 470 | 1077 | 45 | 74 |
| 48 | 566 | 387 | 73 | 70.5 | 160 | 560 | 480 | 747 | 55 | 618 | 470 | 1082 | 45 | 71 |
| 52 | 576 | 395 | 72.5 | 70.5 | 170 | 575 | 520 | 779 | 55 | 628 | 470 | 1092 | 45 | 71 |
| 55 | 594 | 395 | 72.3 | 70.5 | 190 | 585 | 550 | 806 | 55 | 636 | 470 | 1101 | 45 | 71 |
| 58 | 615 | 400 | 72 | 71 | 210 | 600 | 580 | 834 | 55 | 643 | 470 | 1107 | 45 | 67 |
All measurements in millimetres unless marked (°) for angles.
