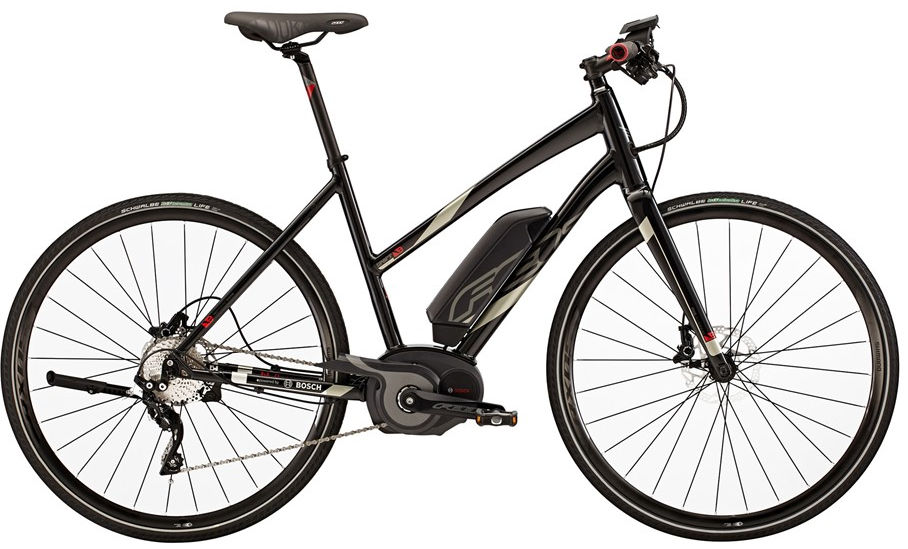

2015 Felt SPORTe Step-Thru geometry
Full frame geometry for the 2015 Felt SPORTe Step-Thru, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 575 | 374 | 72.5 | 70.5 | 170 | 555 | 440 | 620 | 55 | 608 | 470 | 1072 | 45 | 71 |
| 49 | 594 | 378 | 72.5 | 70.5 | 190 | 565 | 490 | 623 | 55 | 619 | 470 | 1083 | 45 | 71 |
All measurements in millimetres unless marked (°) for angles.
