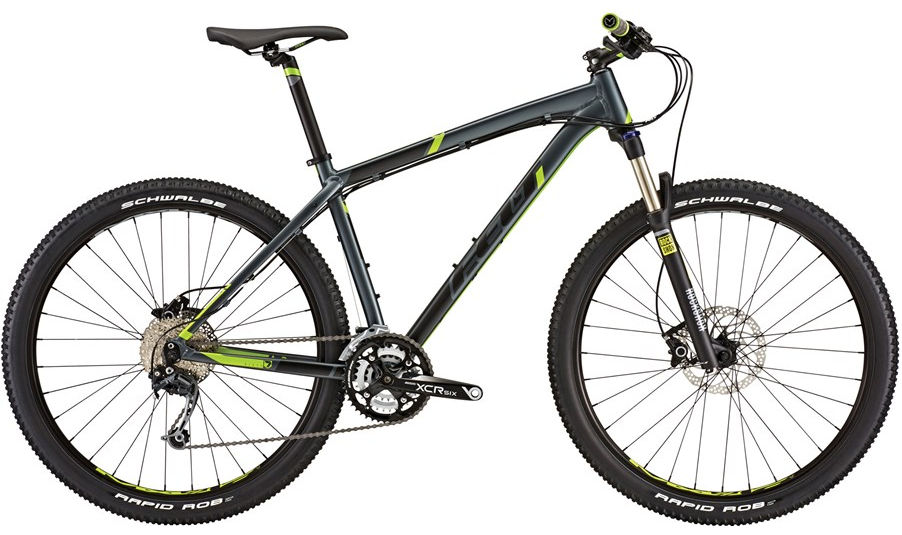

2015 Felt Seven geometry
Full frame geometry for the 2015 Felt Seven, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 560 | 375 | 73.5 | 70 | 90 | 540 | 315 | 620 | 50 | 607 | 425 | 1026 | 42 | 77 |
| 14 | 579 | 394 | 73.5 | 70 | 90 | 565 | 356 | 660 | 50 | 633 | 425 | 1053 | 42 | 77 |
| 16 | 588 | 411 | 73 | 70 | 100 | 590 | 406 | 700 | 50 | 653 | 425 | 1073 | 42 | 77 |
| 18 | 598 | 427 | 73 | 70 | 110 | 610 | 457 | 745 | 50 | 673 | 425 | 1093 | 42 | 77 |
| 20 | 607 | 445 | 73 | 70 | 120 | 630 | 508 | 780 | 50 | 694 | 425 | 1114 | 42 | 77 |
| 22 | 616 | 461 | 73 | 70 | 130 | 650 | 559 | 810 | 50 | 714 | 425 | 1134 | 42 | 77 |
All measurements in millimetres unless marked (°) for angles.
