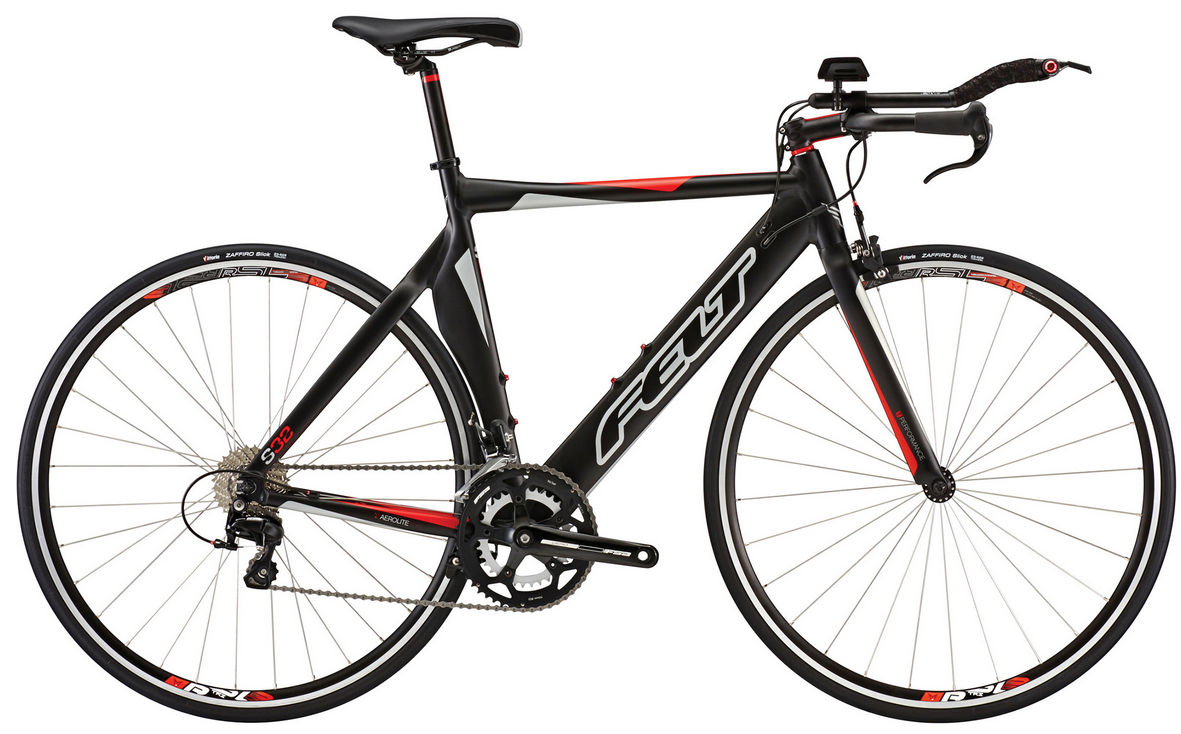

2014 Felt S32 2014 geometry
Full frame geometry for the 2014 Felt S32 2014, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 472 | 373 | 78.8 | 71 | 120 | 466 | 470 | 45 | 565 | 375 | 935 | 41 | 64 |
| 51 | 524 | 385 | 78 | 72 | 120 | 496 | 510 | 70 | 582 | 395 | 967 | 43 | 63 |
| 54 | 535 | 403 | 78 | 72.5 | 130 | 518 | 540 | 70 | 599 | 395 | 984 | 43 | 60 |
| 56 | 554 | 419 | 78 | 72.5 | 150 | 538 | 560 | 70 | 621 | 395 | 1006 | 43 | 60 |
| 58 | 573 | 435 | 78 | 72.5 | 170 | 558 | 580 | 70 | 643 | 395 | 1028 | 43 | 60 |
| 61 | 592 | 444 | 78 | 72.5 | 190 | 570 | 610 | 70 | 657 | 395 | 1042 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
