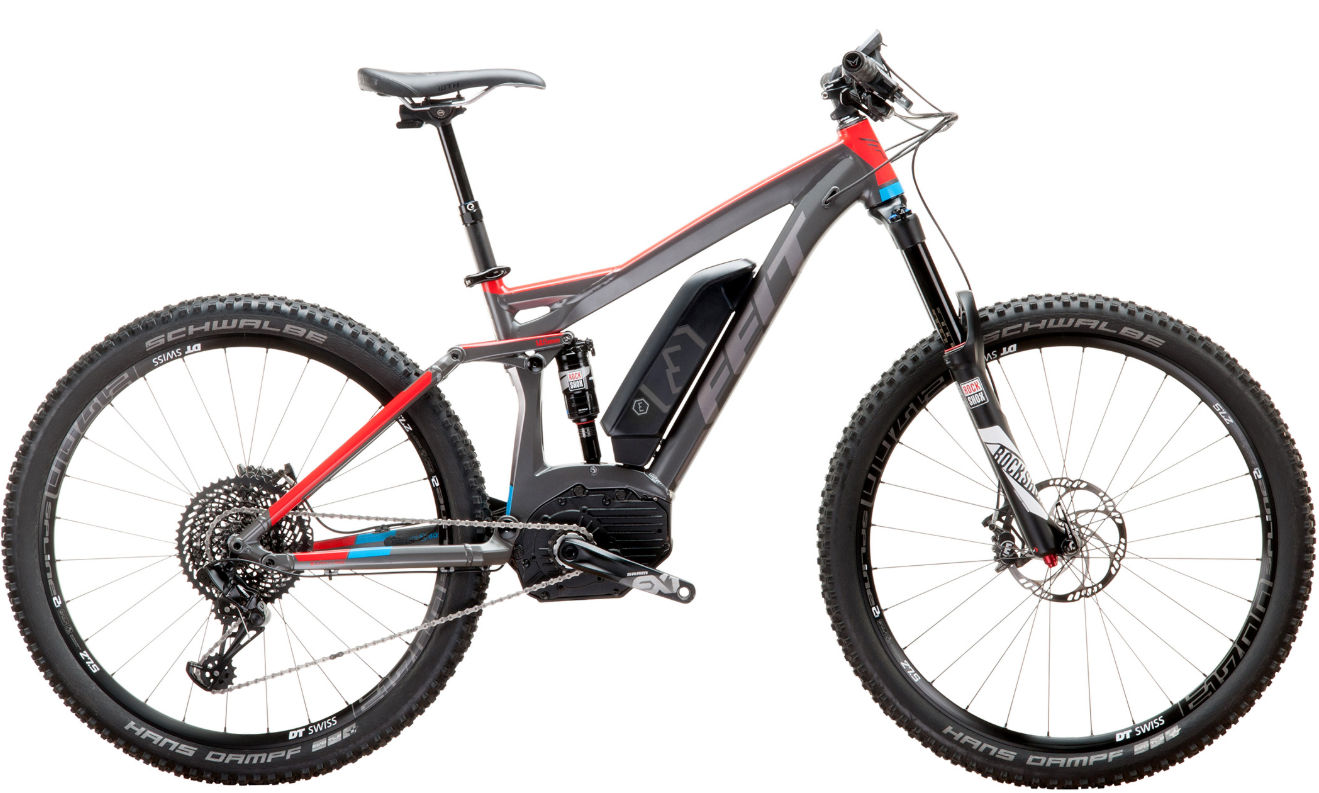

2018 Felt Redemption E geometry
Full frame geometry for the 2018 Felt Redemption E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 405 | 73.5 | 67.5 | 115 | 580 | 410 | 696 | 14 | 689 | 1159 | 42 |
| M | 598 | 427 | — | 67.5 | 125 | 604 | 440 | 703 | 14 | 714 | 1184 | 42 |
| L | 608 | 447 | — | 67.5 | 135 | 627 | 490 | 740 | 14 | 739 | 1208 | 42 |
| XL | 617 | 469 | — | 67.5 | 145 | 652 | 540 | 772 | 14 | 765 | 1234 | 42 |
All measurements in millimetres unless marked (°) for angles.
