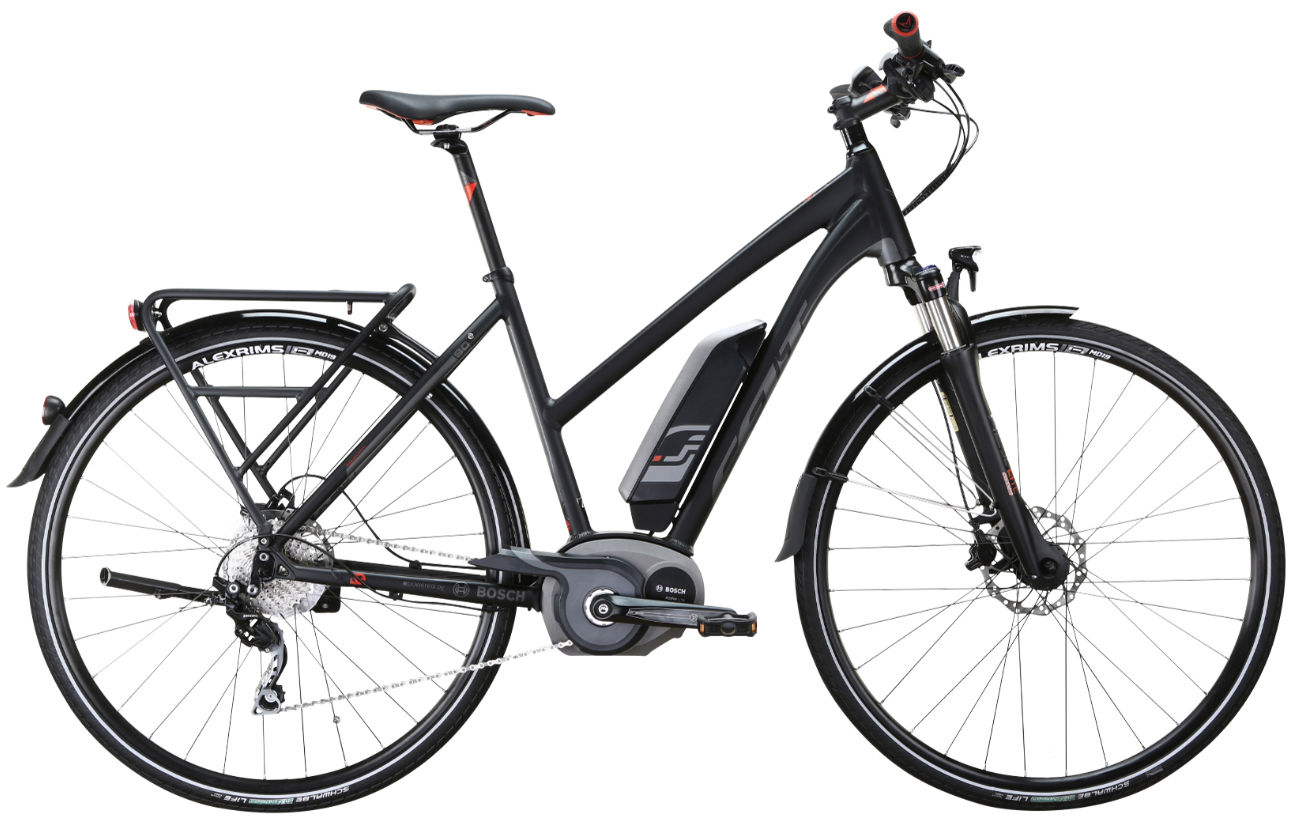

2018 Felt QXe90/100 Women geometry
Full frame geometry for the 2018 Felt QXe90/100 Women, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 618 | 359 | 72.5 | 70.5 | 145 | 555 | 440 | 631 | 55 | 606 | 470 | 1071 | 42 |
| 49 | 632 | 365 | 72.5 | 70.5 | 160 | 565 | 490 | 633 | 55 | 617 | 470 | 1081 | 42 |
All measurements in millimetres unless marked (°) for angles.
