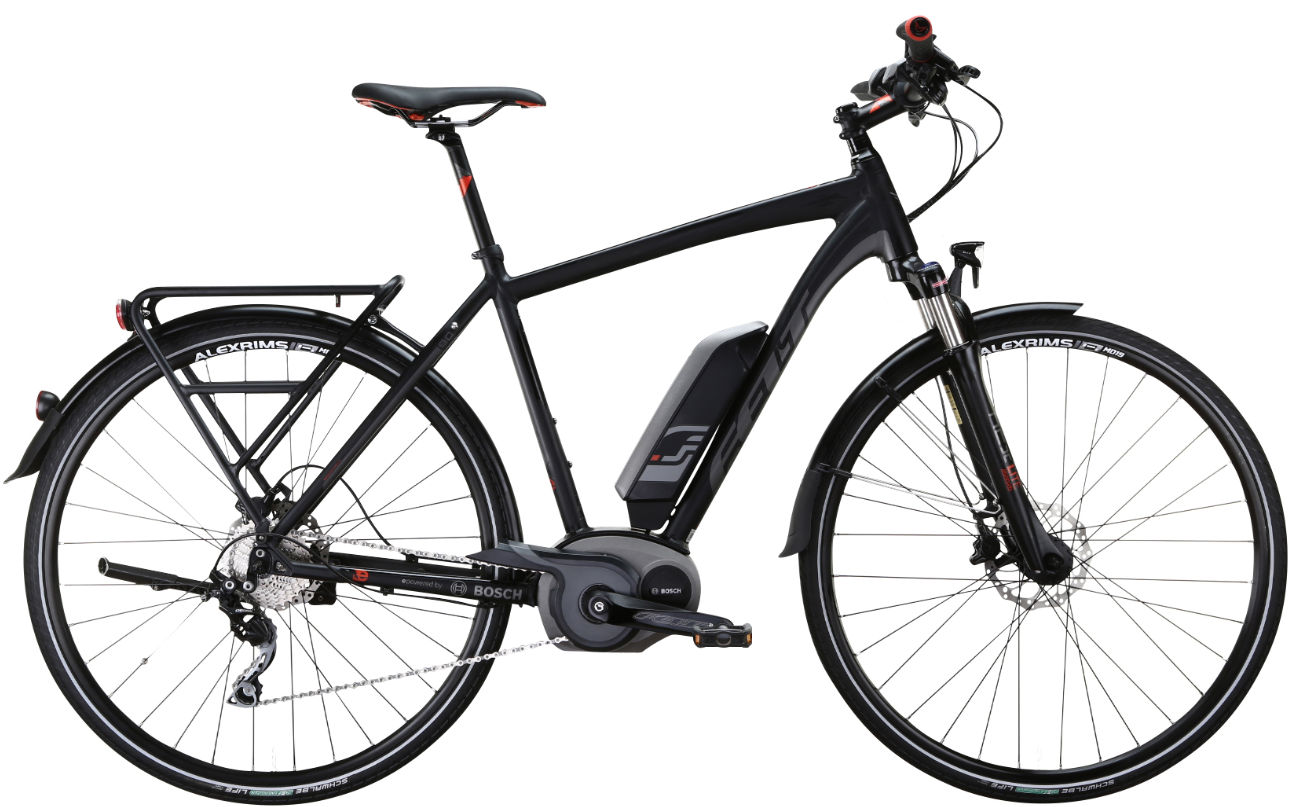

2018 Felt QXe90/100 Men geometry
Full frame geometry for the 2018 Felt QXe90/100 Men, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 588 | 370 | 74 | 70 | 115 | 540 | 440 | 716 | 55 | 612 | 470 | 1077 | 42 |
| 48 | 604 | 375 | 73 | 70.5 | 130 | 560 | 480 | 752 | 55 | 617 | 470 | 1081 | 42 |
| 52 | 618 | 380 | 72.5 | 70.5 | 145 | 575 | 520 | 787 | 55 | 627 | 470 | 1091 | 42 |
| 55 | 632 | 382 | 72.3 | 70.5 | 160 | 585 | 550 | 812 | 55 | 634 | 470 | 1099 | 42 |
| 58 | 649 | 388 | 72 | 71 | 175 | 600 | 580 | 838 | 55 | 640 | 470 | 1105 | 42 |
All measurements in millimetres unless marked (°) for angles.
