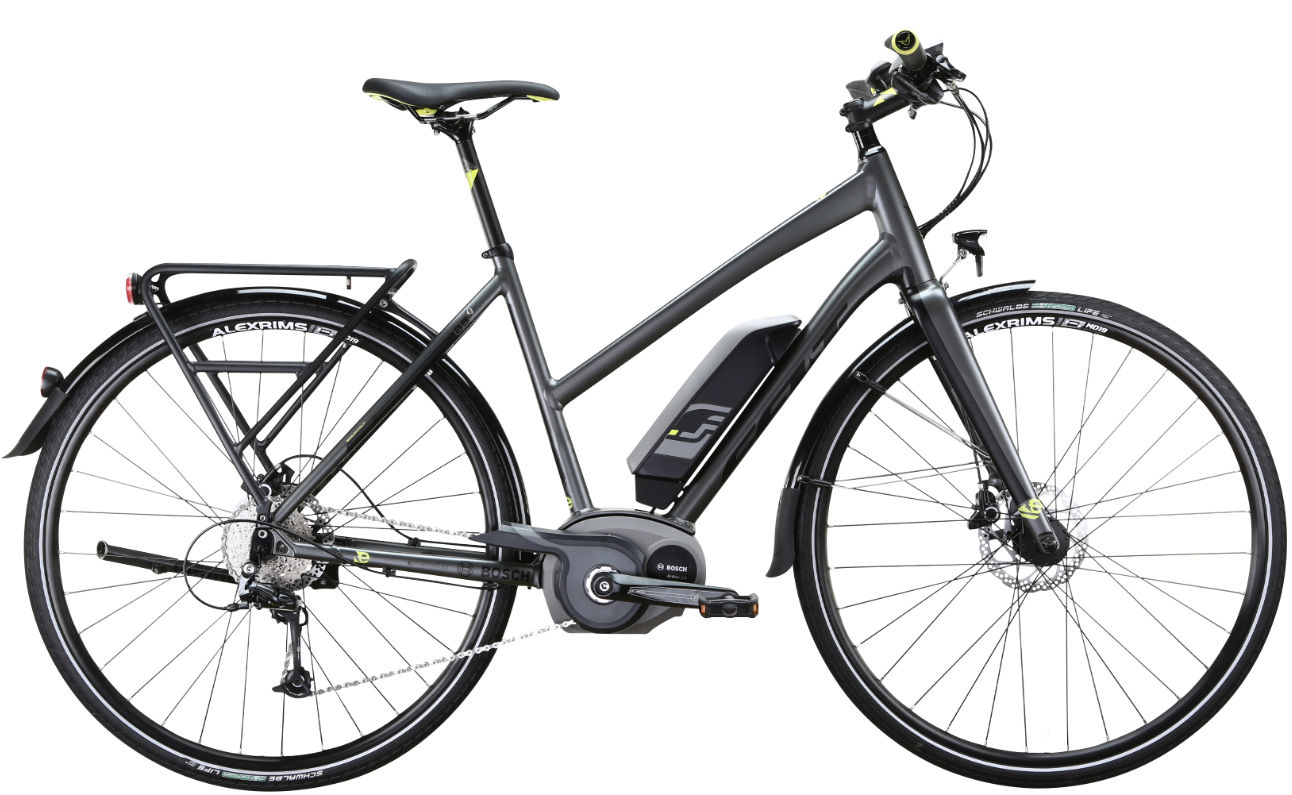

2018 Felt QXe85 Women geometry
Full frame geometry for the 2018 Felt QXe85 Women, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 575 | 373 | 72.5 | 70.5 | 170 | 555 | 440 | 614 | 55 | 608 | 470 | 1072 | 45 |
| 49 | 594 | 377 | 72.5 | 70.5 | 190 | 565 | 490 | 617 | 55 | 619 | 470 | 1083 | 45 |
All measurements in millimetres unless marked (°) for angles.
