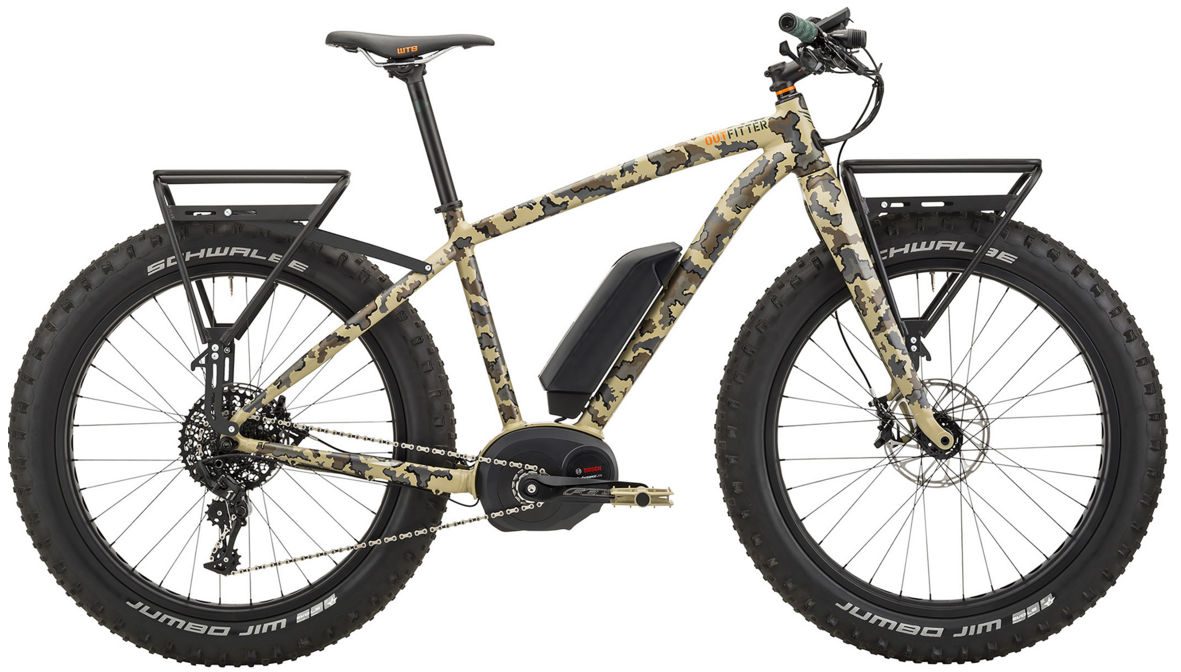

2016 Felt Outfitter geometry
Full frame geometry for the 2016 Felt Outfitter, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 603 | 396 | 73 | 70 | 406 | 580 | 348 | 720 | 65 | 643 | 495 | 1130 | 45 |
| 18 | 617 | 421 | 73 | 70 | 470 | 610 | 412 | 774 | 65 | 673 | 495 | 1161 | 45 |
| 21 | 631 | 447 | 73 | 70 | 533 | 640 | 475 | 825 | 65 | 704 | 495 | 1192 | 45 |
All measurements in millimetres unless marked (°) for angles.
