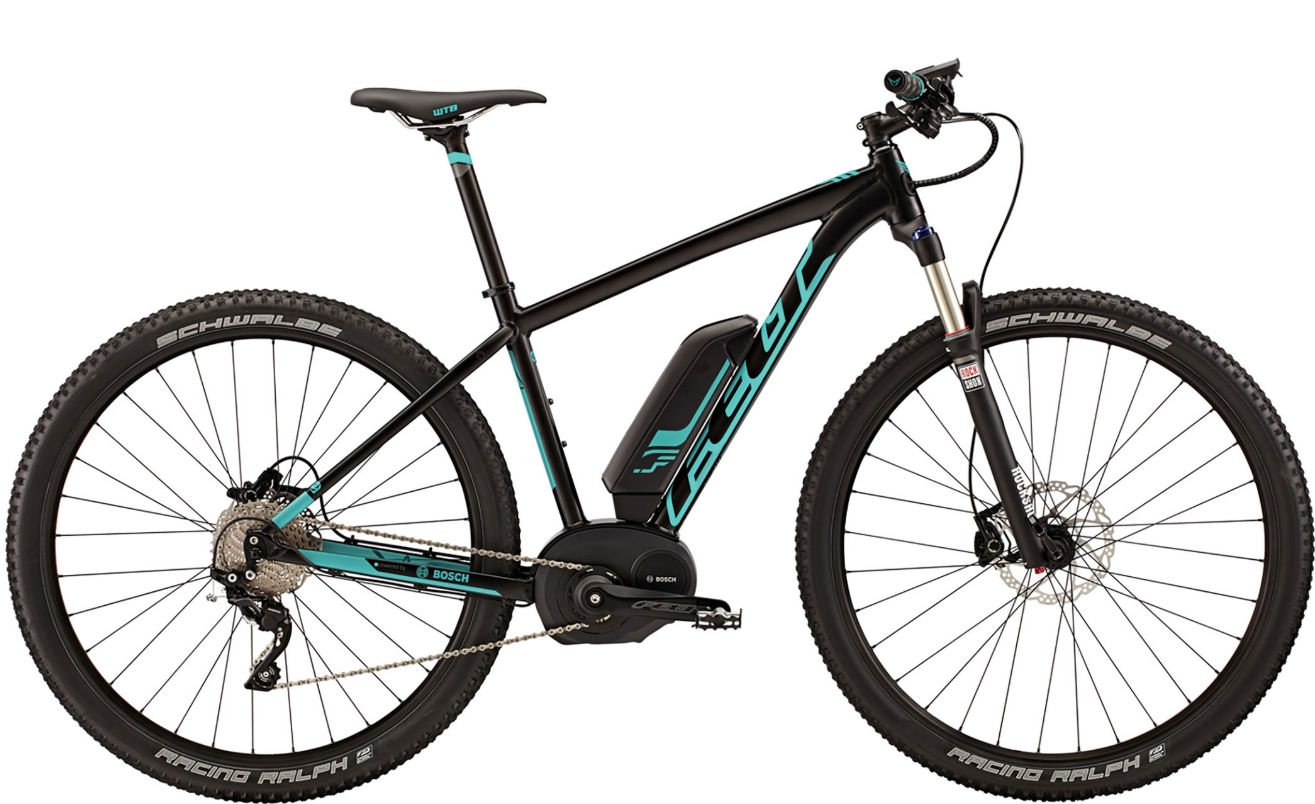

2015 Felt NINEe geometry
Full frame geometry for the 2015 Felt NINEe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5 | 595 | 385 | 73.5 | 71 | 90 | 561 | 368 | 679 | 65 | 619 | 483 | 1094 | 46 | 75 |
| 16 | 614 | 398 | 73 | 71 | 90 | 586 | 406 | 714 | 65 | 639 | 483 | 1115 | 46 | 75 |
| 18 | 623 | 415 | 73 | 71 | 100 | 605 | 457 | 760 | 65 | 659 | 483 | 1134 | 46 | 75 |
| 20 | 632 | 432 | 73 | 71 | 110 | 625 | 508 | 794 | 65 | 679 | 483 | 1154 | 46 | 75 |
| 22 | 642 | 449 | 73 | 71 | 120 | 645 | 559 | 823 | 65 | 699 | 483 | 1175 | 46 | 75 |
All measurements in millimetres unless marked (°) for angles.
