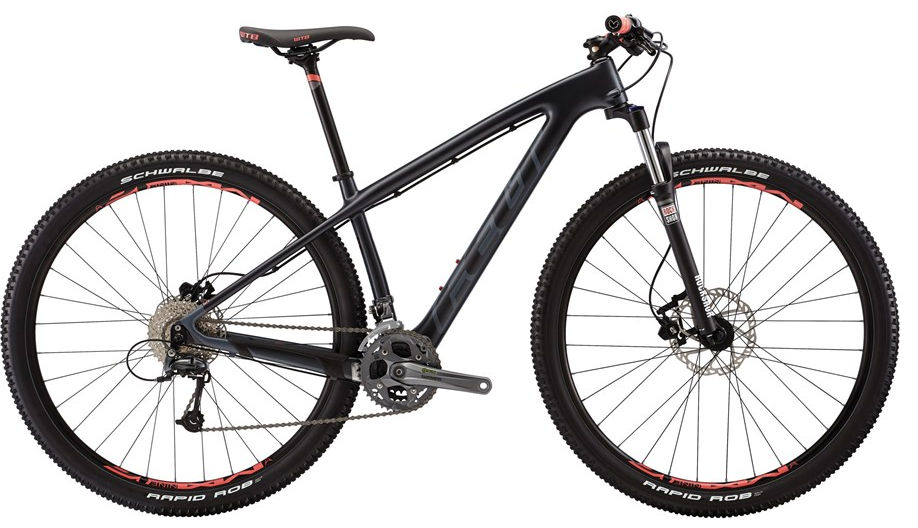

2015 Felt Nine W geometry
Full frame geometry for the 2015 Felt Nine W, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 593 | 378 | 73.5 | 71 | 90 | 560 | 356 | 679 | 65 | 617 | 440 | 1049 | 51 | 69 |
| 16 | 616 | 396 | 73 | 71.5 | 90 | 585 | 406 | 714 | 65 | 632 | 440 | 1064 | 46 | 71 |
| 18 | 625 | 413 | 73 | 71.5 | 100 | 605 | 457 | 760 | 65 | 652 | 440 | 1084 | 46 | 71 |
All measurements in millimetres unless marked (°) for angles.
