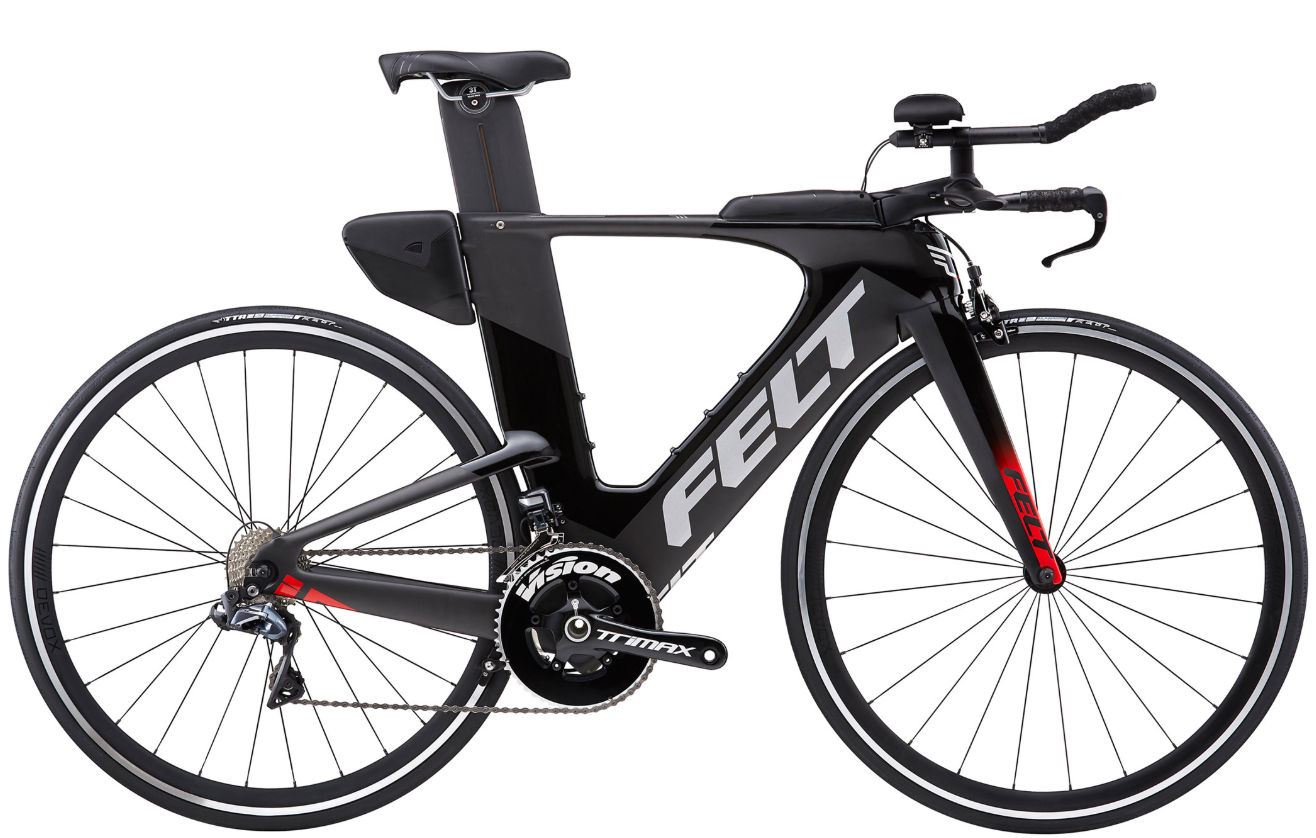

2016 Felt IA10 Series geometry
Full frame geometry for the 2016 Felt IA10 Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 467 | 380 | 79.5 | 71.5 | 63 | 467 | 489 | 733 | 72 | 570 | 400 | 958 | 50 | 59 |
| 51 | 489 | 395 | 79 | 71.5 | 86 | 490 | 512 | 755 | 72 | 591 | 400 | 980 | 50 | 59 |
| 54 | 513 | 406 | 78.5 | 72 | 109 | 510 | 538 | 779 | 72 | 601 | 400 | 990 | 45 | 61 |
| 56 | 537 | 424 | 78 | 72 | 134 | 538 | 563 | 803 | 72 | 626 | 400 | 1016 | 45 | 61 |
| 58 | 559 | 443 | 77.5 | 72 | 157 | 567 | 586 | 825 | 72 | 652 | 400 | 1042 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
