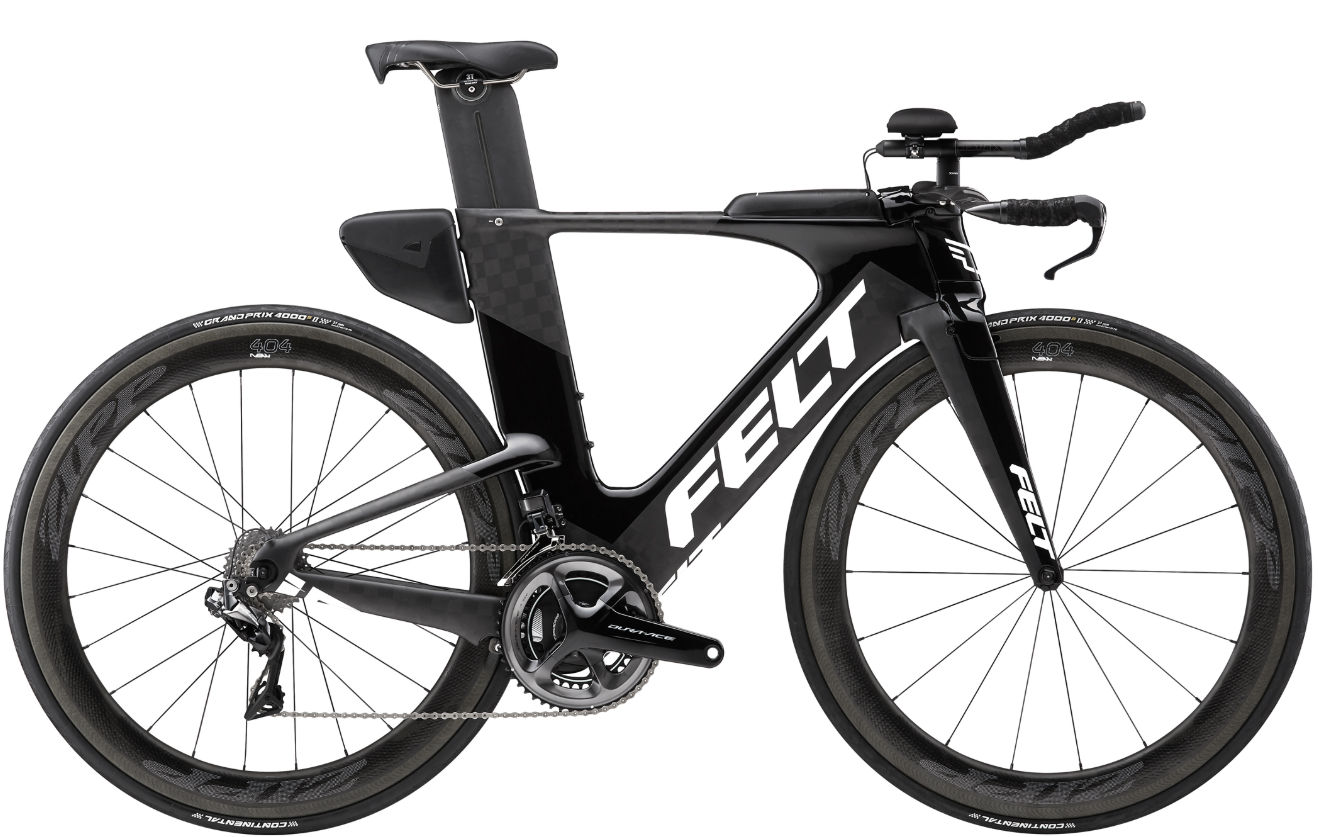

2014 Felt IA geometry
Full frame geometry for the 2014 Felt IA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 478 | 379 | 79.5 | 71.5 | 68 | 468 | 496 | 744 | 72 | 572 | 400 | 961 | 50 | 59 |
| 51 | 505 | 387 | 79 | 71.5 | 96 | 486 | 525 | 776 | 72 | 589 | 400 | 978 | 50 | 59 |
| 54 | 522 | 404 | 78.5 | 72 | 111 | 510 | 546 | 790 | 72 | 602 | 400 | 991 | 45 | 61 |
| 56 | 546 | 425 | 78 | 72 | 136 | 541 | 571 | 819 | 72 | 630 | 400 | 1020 | 45 | 61 |
| 58 | 572 | 445 | 77.5 | 72 | 163 | 573 | 598 | 840 | 72 | 659 | 400 | 1049 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
