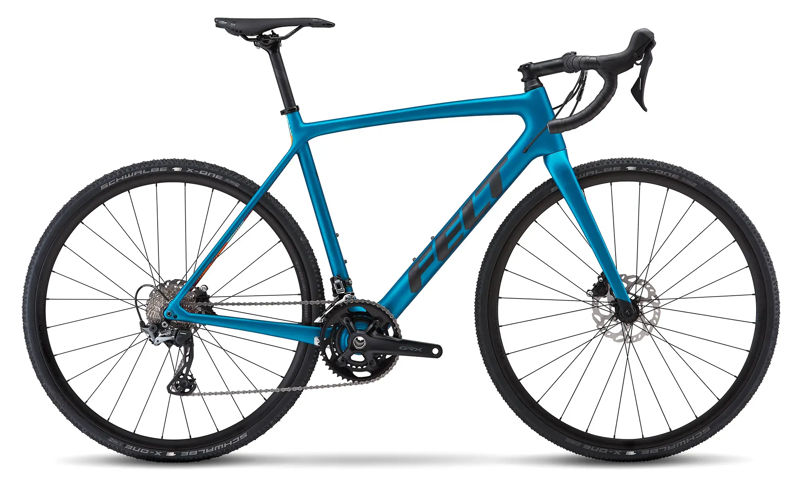

2020 Felt FX Cyclocross geometry
Full frame geometry for the 2020 Felt FX Cyclocross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 47cm | 523 | 380 | 75.5 | 70.5 | 110 | 515 | 470 | 726 | 65 | 599 | 1022 | 50 |
| S 50cm | 533 | 382 | 74.5 | 70.5 | 120 | 530 | 500 | 750 | 65 | 604 | 1028 | 50 |
| M 53cm | 544 | 384 | 73.5 | 71 | 130 | 545 | 530 | 775 | 65 | 605 | 1029 | 50 |
| L 55cm | 568 | 397 | 73.5 | 72 | 150 | 565 | 550 | 796 | 65 | 611 | 1033 | 45 |
| XL 57cm | 587 | 406 | 73.5 | 72 | 170 | 580 | 570 | 815 | 65 | 626 | 1048 | 45 |
| XXL 60cm | 607 | 420 | 73.5 | 72 | 190 | 600 | 590 | 834 | 65 | 647 | 1068 | 45 |
All measurements in millimetres unless marked (°) for angles.
