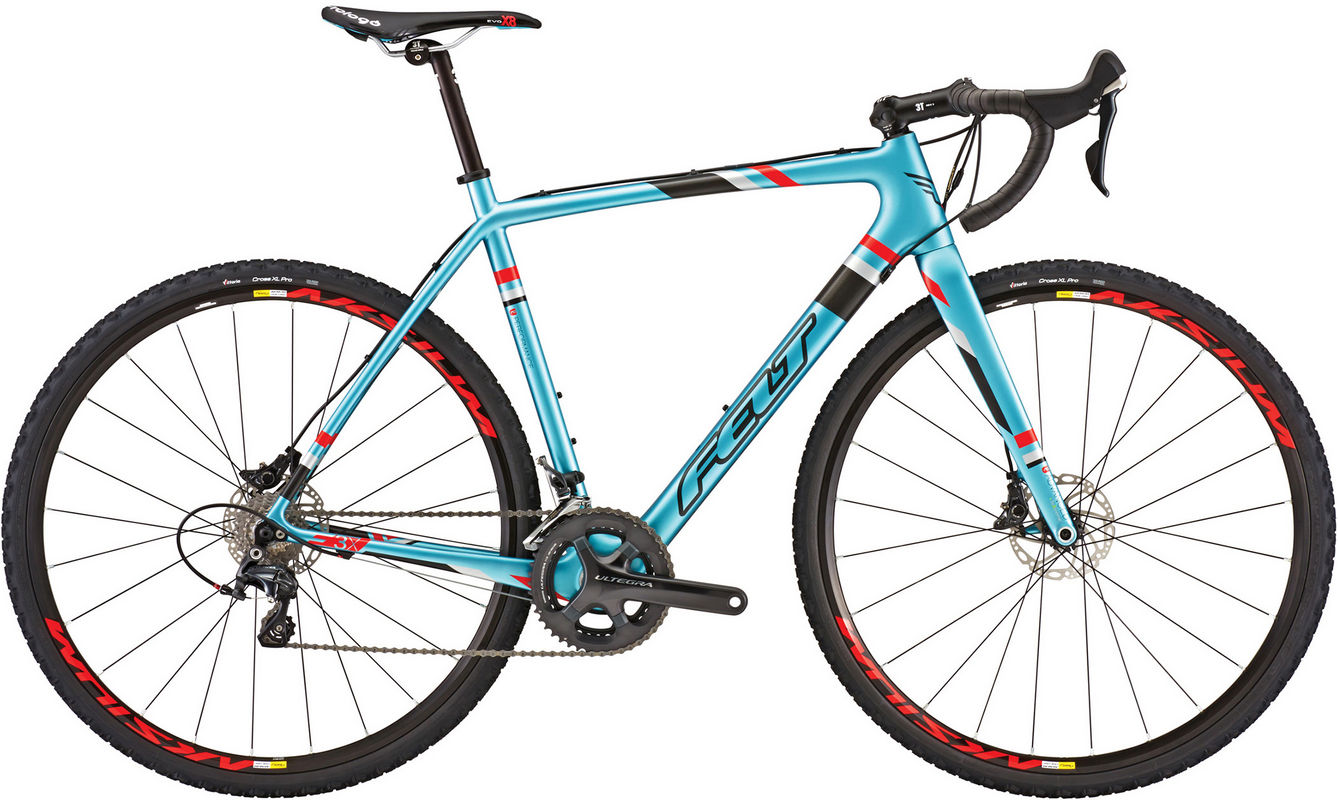

2014 Felt FX Carbon geometry
Full frame geometry for the 2014 Felt FX Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 525 | 368 | 75 | 71 | 110 | 510 | 470 | 726 | 65 | 583 | 430 | 1005 | 50 | 68 |
| 50 | 538 | 375 | 74.5 | 71.5 | 120 | 525 | 500 | 751 | 65 | 584 | 430 | 1005 | 50 | 64 |
| 53 | 549 | 377 | 73.5 | 72 | 130 | 540 | 530 | 779 | 65 | 585 | 430 | 1007 | 50 | 61 |
| 55 | 568 | 391 | 73.5 | 72 | 150 | 560 | 550 | 796 | 65 | 605 | 430 | 1027 | 45 | 66 |
| 57 | 587 | 400 | 73 | 72 | 170 | 580 | 570 | 814 | 65 | 620 | 430 | 1042 | 45 | 66 |
| 60 | 611 | 418 | 73 | 72 | 195 | 605 | 600 | 834 | 65 | 646 | 430 | 1068 | 45 | 66 |
| 63 | 616 | 426 | 73 | 72 | 200 | 615 | 630 | 864 | 65 | 656 | 430 | 1078 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
