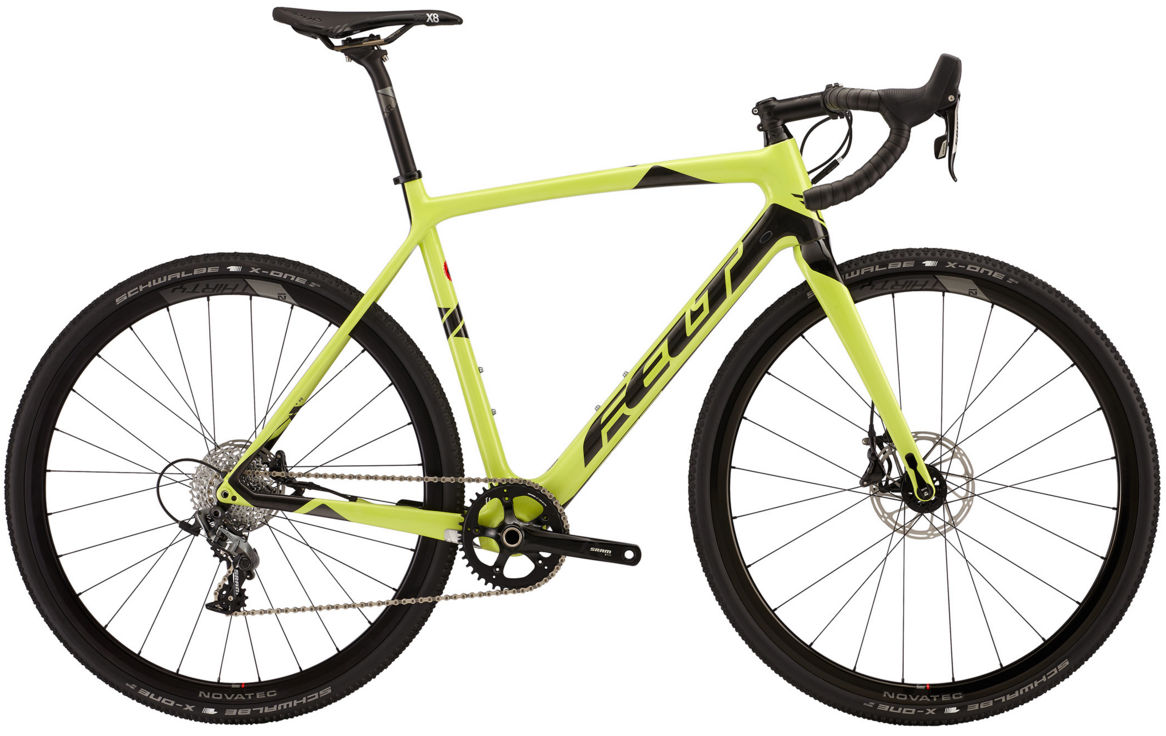

2016 Felt FX Carbon MKII geometry
Full frame geometry for the 2016 Felt FX Carbon MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 523 | 380 | 75.5 | 70.5 | 110 | 515 | 470 | 726 | 65 | 599 | 430 | 1022 | 50 |
| 50 | 533 | 382 | 74.5 | 70.5 | 120 | 530 | 500 | 750 | 65 | 604 | 430 | 1028 | 50 |
| 53 | 544 | 384 | 73.5 | 71 | 130 | 545 | 530 | 775 | 65 | 605 | 430 | 1029 | 50 |
| 55 | 568 | 397 | 73.5 | 72 | 150 | 565 | 550 | 796 | 65 | 611 | 430 | 1033 | 45 |
| 57 | 587 | 406 | 73.5 | 72 | 170 | 580 | 570 | 815 | 65 | 626 | 430 | 1048 | 45 |
| 60 | 607 | 420 | 73.5 | 72 | 190 | 600 | 590 | 834 | 65 | 647 | 430 | 1068 | 45 |
All measurements in millimetres unless marked (°) for angles.
