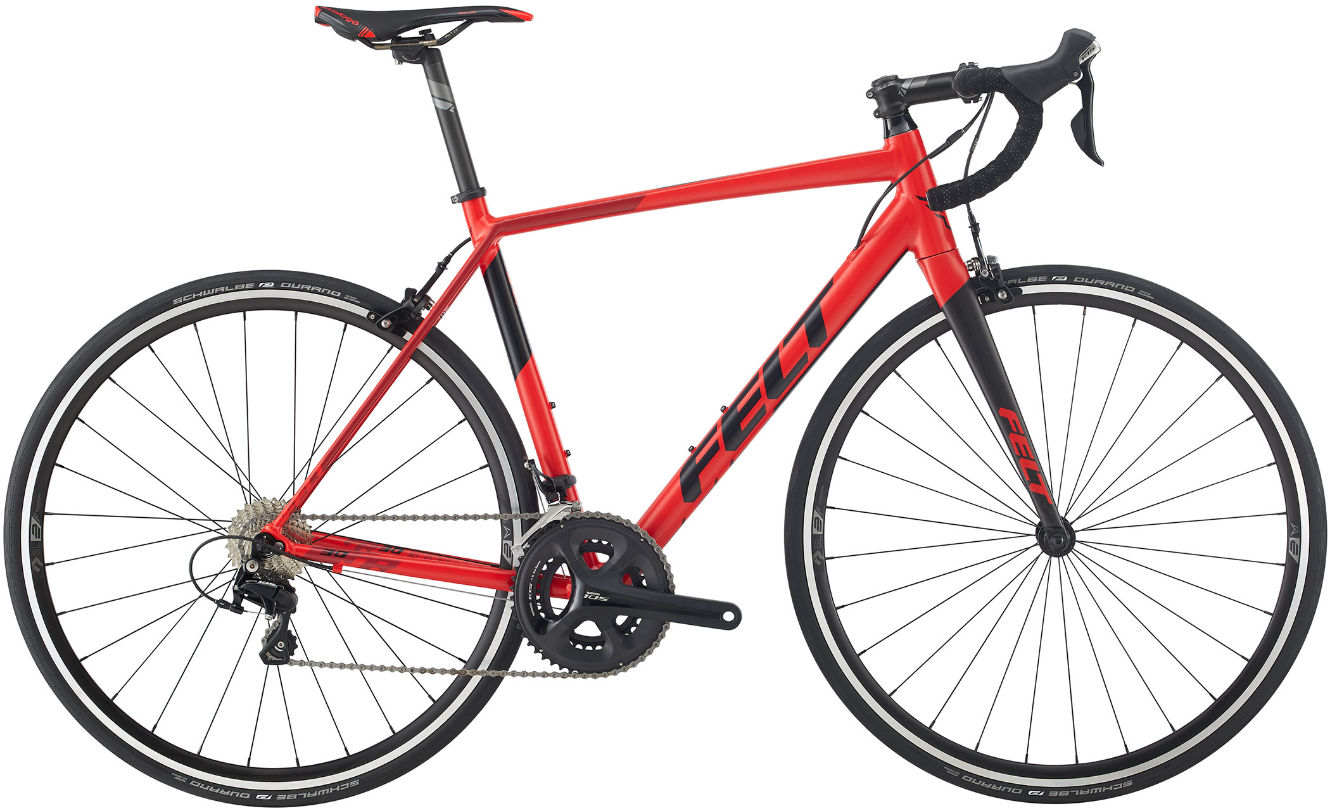

2017 Felt FR AL geometry
Full frame geometry for the 2017 Felt FR AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 512 | 370 | 74.5 | 71.5 | 100 | 512 | 676 | 72 | 577 | 407 | 973 | 52 |
| 51 | 530 | 378 | 74 | 72.2 | 115 | 530 | 710 | 72 | 578 | 407 | 975 | 47 |
| 54 | 550 | 385 | 73.5 | 73 | 135 | 548 | 747 | 70 | 585 | 407 | 982 | 47 |
| 56 | 572 | 394 | 73.5 | 73.5 | 155 | 563 | 767 | 70 | 591 | 407 | 988 | 43 |
| 58 | 592 | 405 | 73.2 | 73.8 | 175 | 583 | 790 | 70 | 606 | 410 | 1006 | 43 |
| 61 | 621 | 414 | 73 | 74 | 205 | 604 | 828 | 70 | 621 | 410 | 1021 | 43 |
All measurements in millimetres unless marked (°) for angles.
