2014 Felt · R

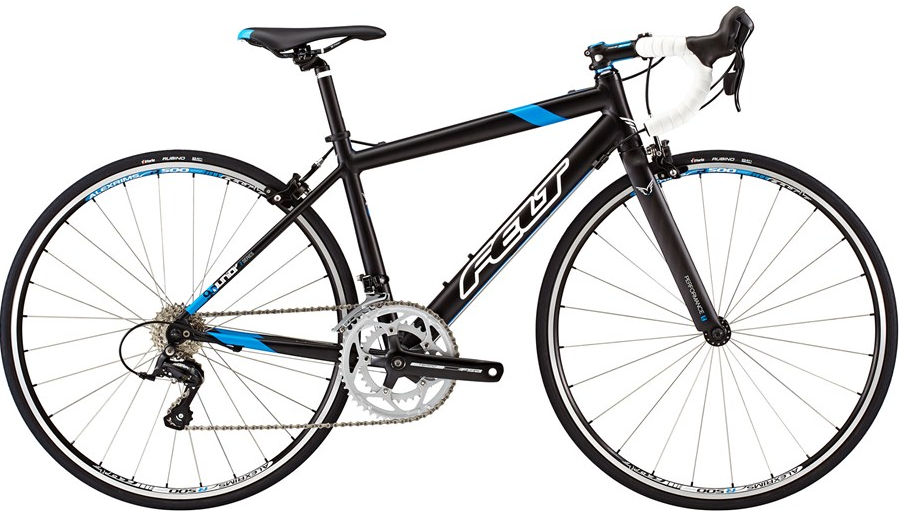

2014 Felt F95 Jr geometry
Full frame geometry for the 2014 Felt F95 Jr, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 489 | 358 | 75.5 | 71.5 | 130 | 483 | 400 | 665 | 49 | 551 | 380 | 925 | 41 | 61 |
All measurements in millimetres unless marked (°) for angles.
