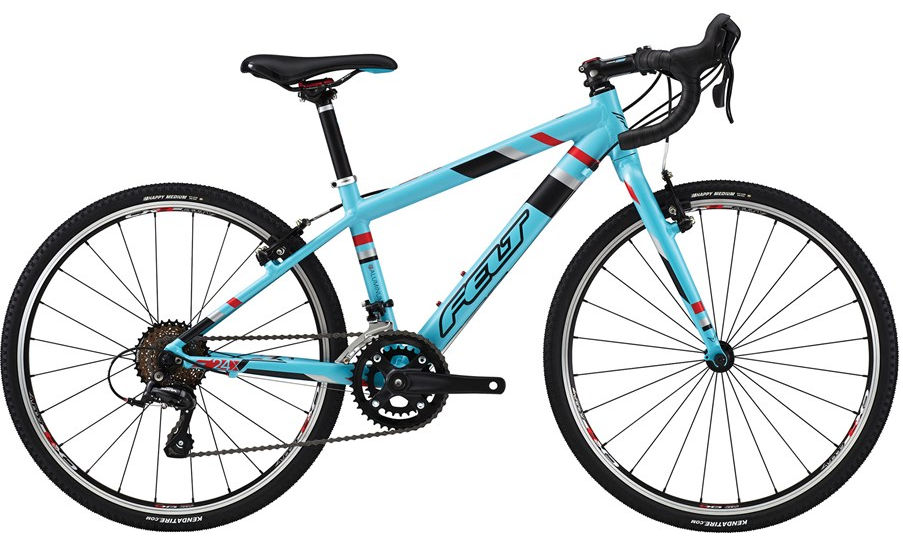

2014 Felt F24X geometry
Full frame geometry for the 2014 Felt F24X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 471 | 333 | 74.5 | 70.5 | 110 | 465 | 345 | 580 | 40 | 529 | 380 | 905 | 40 | 56 |
All measurements in millimetres unless marked (°) for angles.
