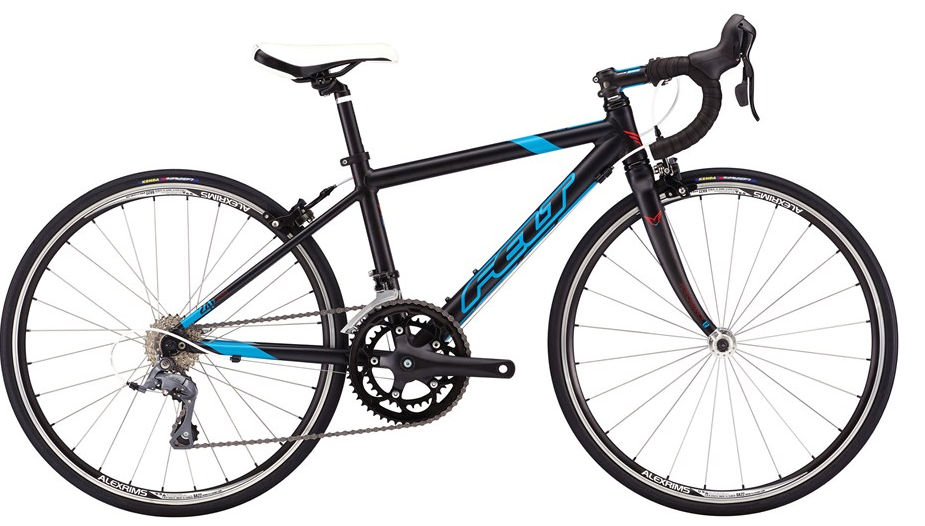

2014 Felt F24 geometry
Full frame geometry for the 2014 Felt F24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 448 | 314 | 73.5 | 72 | 120 | 447 | 345 | 602 | 30 | 493 | 360 | 851 | 40 | 49 |
All measurements in millimetres unless marked (°) for angles.
