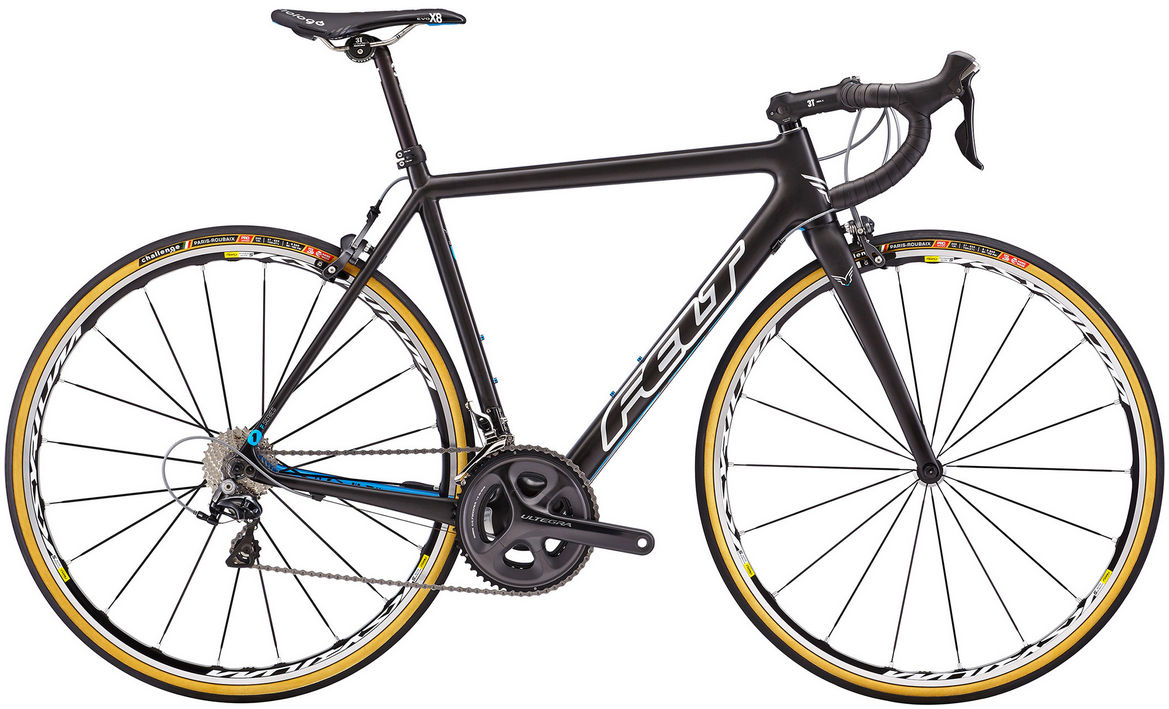

2014 Felt F1 PR geometry
Full frame geometry for the 2014 Felt F1 PR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 | 536 | 378 | 72.3 | 71.8 | 120 | 545 | 520 | 750 | 73 | 588 | 420 | 967 | 51 | 56 |
| 56 | 557 | 386 | 72.3 | 72.3 | 140 | 560 | 540 | 770 | 74 | 598 | 420 | 1007 | 51 | 53 |
| 58 | 578 | 399 | 72.3 | 72.8 | 160 | 580 | 570 | 796 | 74 | 613 | 420 | 1022 | 51 | 50 |
| 61 | 617 | 407 | 71.9 | 72.9 | 200 | 605 | 610 | 834 | 74 | 632 | 420 | 1041 | 51 | 49 |
All measurements in millimetres unless marked (°) for angles.
